4.5'' High Carbon Steel RC Hammer For Geological Exploration

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	4.5'' RC Hammer
Certification :	SGS
Price :	negotiate
Payment Terms :	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :	5000pcs per month
Delivery Time :	15-22 days

Add to Cart

Product Details
Company Profile

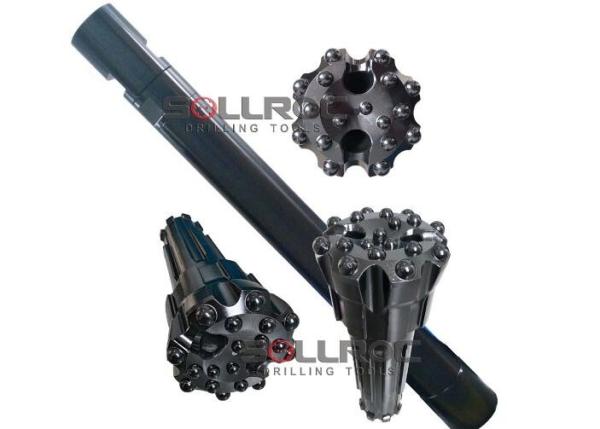

4.5'' High Carbon Steel RC Hammer For Geological Exploration

Reverse Circulation 4.5'' RC Drilling Hammer For Blasting And Mining Drilling

Product Introduce:

Reverse circulation is a fast and cost-efficient method of retrieving high-quality samples from exploration and mine drilling. It utilizes compressed air as the circulating fluid to carry the rock cuttings in a reverse circulation manner. Compressed air flows through the dual channel swivel, the annular space of the double-wall drill pipes, and the hollow through the DTH hammer, making the high-frequency impulse motions. Then, air is forced into the grooves of the drill bit and carries cuttings and core samples through the center of the drill bit into the inner central space of the double-wall drill pipe and then up to the surface.

Adavantages:

1.Versatile across terrains

2.Reliable samples

3.Workforce and time savings

Specification:

Technical Parameters

RC4.5-SRC542 RC HAMMER

Length(Without bit)	Weight(Without bit)	External diameter	Bit Shank	Hole range	Connection thread
1191mm	57.0kg	109.5mm	SRC542	113-130	3.5'/4'Remet 4"Metzke
Working Pressure	Impact rate at 2.4Mpa	Recommended rotation speed		Air consumption
1.5-3.5Mpa	35HZ	25-40r/min		1.7Mpa	2.4Mpa	3.0Mpa
				12m3/min	18m3/min	26m3/min

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3-E531	RE531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC3.5-Y	RC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC4-E004	RE004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	RE542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	RE543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	RE545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	PR40(RE040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	PR52/PR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-E547	RE547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	PR54(RE054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

Working principle

The on-board compressor delivers power to a pneumatic reciprocating piston. The piston, in turn, drives a tungsten-steel drill bit which is purpose designed to be able to crush hard rock.

Similar to air core drilling, drill cuttings are returned to surface inside rods. We achieve this through the use of dual wall drill rods: an outer drill rod with an inner tube. When compressed air is blown through the rod, the volume displaces the air, lifting the samples to the surface.

Once cuttings reach a diverter at the top of the hole, they’re moved through a hose and around the cyclone, which slows the sample down. From the cyclone the sample goes over a splitter that delivers a percentage of the entire sample into a sample bag. The exploration drilling team then collect the samples aligned to the hole depth and lay them out for the client to log, and then transport to the lab for assay.

Detailed Photo:

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea
