SRC040 Shank RC Hammer With Remet Metzke Thread

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	SRC040 RC Hammer
Certification :	SGS
Price :	negotiate
Payment Terms :	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :	5000pcs per month
Delivery Time :	15-22 days

Add to Cart

Product Details
Company Profile

SRC040 Shank RC Hammer With Remet Metzke Thread

SRC040 RC Drill Hammer Black With Thread Remet / Metzke For Exploration

Product Introduce:

SOLLROC RC(Reverse circulation) hammer and bit are specifically designed for all kind of exploration drilling(deep hole and pit grade control applications).Whether you are exploring potential sites or working an existing mine,the SOLLROC RC hammer will assure of high performance,exceptional reliability and de-pendable support.

Reverse circulation (RC) drilling uses a bit attached to a down-hole hammer to produce a hole. Unlike diamond drilling, RC drilling produces samples of rock cuttings rather than a sample of rock core. The down-hole hammer is powered by compressed air, which also acts as the medium bringing the drill cuttings up to surface. It is mainly used in deep hole exploration and mining ore grade control.

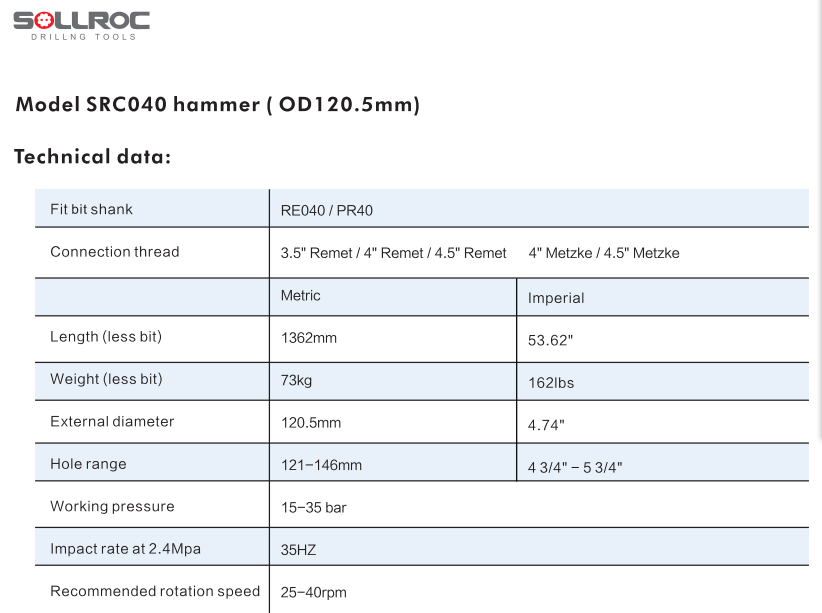

Specification:

SOLLROC RC SRC040 hammer technical date:

Length (less bit)	1362mm
Weight (less bit)	80.5kg
External diamater	φ120.5mm
Bit shank	SRC040
Hole range	φ124-φ142
Connection thread	3.5"-4.5" Remet 3.5"-4.5" Metzke

Working pressure	1.5Mpa-3.5Mpa

Adavantages:

1.Spare parts are made of quality raw material with carburized treatment offer good wear resistance. The hammer achieve excellent wear resistance and high penetration rate
2.Various selection for bit head shape, button shape and button configuration. It can completely satisfy the customization requirement and have adaptability to varies of rock conditions.
3.the bit is interchangeable with well-known brand shank. The interchangeable shank design helps customers to optimized inventory.

Detailed Photo:

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea
