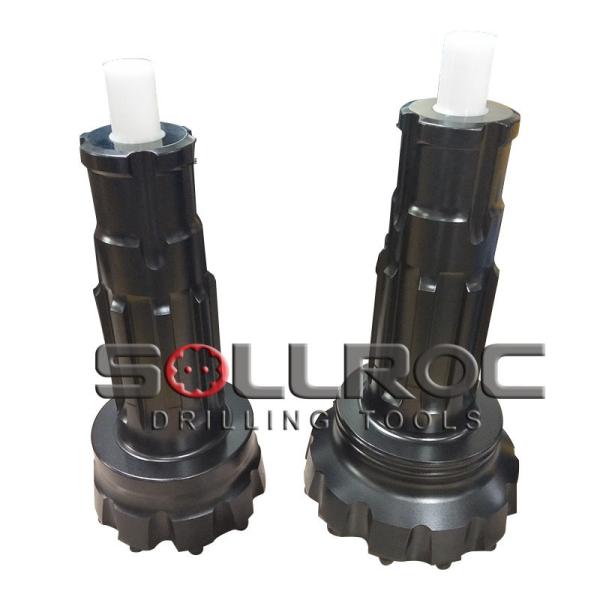

178mm SD6 Faster Drilling Speed DTH Hammer Bits For Water Well
Drilling Use
Product description
DTH drilling tool is a kind of drilling system which uses
compressed air as motivation, makes drilling impact motivation
parts down the hole, to control the piston reciprocating motion by
the distribution device in the hammer, and then impacts the DTH bit
in the front of the hammer to transit the impacting power to the
bit. The DTH bit in the front of the hammer breaks the rock to
drill hole.
Product Advantages:
1.Strict quality controlling
2.Selected high quality special steels and carbide
3.Produced by CNC machines
4.Simple and reasonable design, Low problem rate
5.Low air consumption, smooth drilling, Maximum impact power, High
penetration rate
SD6 DTH Drill Bit overview
For 6" hammer
DTH bits shank | Bit Dia.
(mm) | No.
Air Holes | Gauge
Buttons | Front
Buttons | Weight
(Kg) | Part No. |
| mm | inch |
| SD6 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 22.0 | SD6-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 23.0 | SD6-165 |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 24.0 | SD6-178 |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 25.0 | SD6-190 |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 28.0 | SD6-203 |
Face shape Features
Concave Face
1. Capable of drilling straighter holes in medium to hard rock
which is broken or less consolidated
2. Offers high penetration rate in the above stated rock conditions
3. Has excellent air flushing characteristics
4. Predominant face style for majority of drilling conditions
Flat Face
1. Have a superior performance in hard, abrasive and broken rock
conditions
2. They however have a slower penetration rate in comparison to a
concave face bit
Convex Face
1. This face has been designed to offer high penetration rate in
soft rock such as shale, limestone etc
2. They are recognized for having excellent capability for drilling
into moderately consolidated rock conditions
Product application
At present, DTH drilling tool is widely used in underground mining,
quarries, hydraulic and Hydro-Power Engineering, water well
drilling, Mineral exploration, anchoring hole drilling, geothermal
engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a
rapid hammer action to break the rock into sizeable chips which are
then evacuated from the bore hole by the air exhausted from the DTH
Hammer. The technique provides fast drilling of accurately aligned,
straight and clean holes in most ground conditions.
