    SRC543 4'' Thread OD116mm Reverse Circulation Hammer

    Ask Lasest Price
    Brand Name : SOLLROC
    Model Number : 4'' SRC543 RC Hammer
    Certification : SGS
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 5000pcs per month
    Delivery Time : 15-22 days
    • Product Details
    • Company Profile

    SRC543 4'' Thread OD116mm Reverse Circulation Hammer

    Dual pipe RC Drilling Black Color SRC543 4'' RC Hammer OD116mm For Mining Use


    Product Introduce:

    Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.

    Specification:

    SOLLROC RC hammer model SRC543:

    Overall Length (less bit)

    1191mm

    Weight (less bit)

    63kg

    External Diameter

    116mm

    Fit bit shank

    SRC543

    Hole range

    121-146mm (4 3/4''-5 3/4'')

    Top sub thread

    4" Remet / 4.5'' Remet / 4'' Metzke/4.5'' Metzke

    Working presure

    15-35 bar

    Impact rate at 2.4 Mpa

    35Hz



    Bit SRC543 specification:Data reference by drop center face bit

    DiameterNo.*Button Dia(mm)Recommended Shroud dia(mm)Approx Weight (kg)
    mminchGauge buttonCenter buttonCenter
    1214 3/4''8*14mm6*14mm2*14mm11910.7
    1244 7/8''8*14mm6*14mm2*14mm12210.9
    1275''8*14mm6*14mm3*14mm12511.2
    1305 1/8''8*14mm6*14mm3*14mm12811.5
    1335 1/4''8*16mm6*14mm3*14mm13111.7
    1355 3/8''8*16mm6*16mm3*14mm13312
    1375 3/4''8*16mm6*16mm3*14mm13512.3
    1405 1/2''8*16mm6*16mm3*14mm13812.5
    1435 5/8''8*16mm6*16mm3*14mm14112.8
    1465 3/4''8*16mm6*16mm3*14mm14413.5

    Adavantages:

    1.Samples obtained via RC drilling are free of contaminants

    2.The samples are collected at the drill and sent directly to the lab to be assessed

    3.RC sampling requires less handling than other methods

    4.Less handling results in cost reduction and faster turnaround times

    5.The reliability of the cuttings produced during RC drilling is an industry asset. RC grade control is the most cost 6.Effective and efficient method to differentiate between waste rock and minerals.

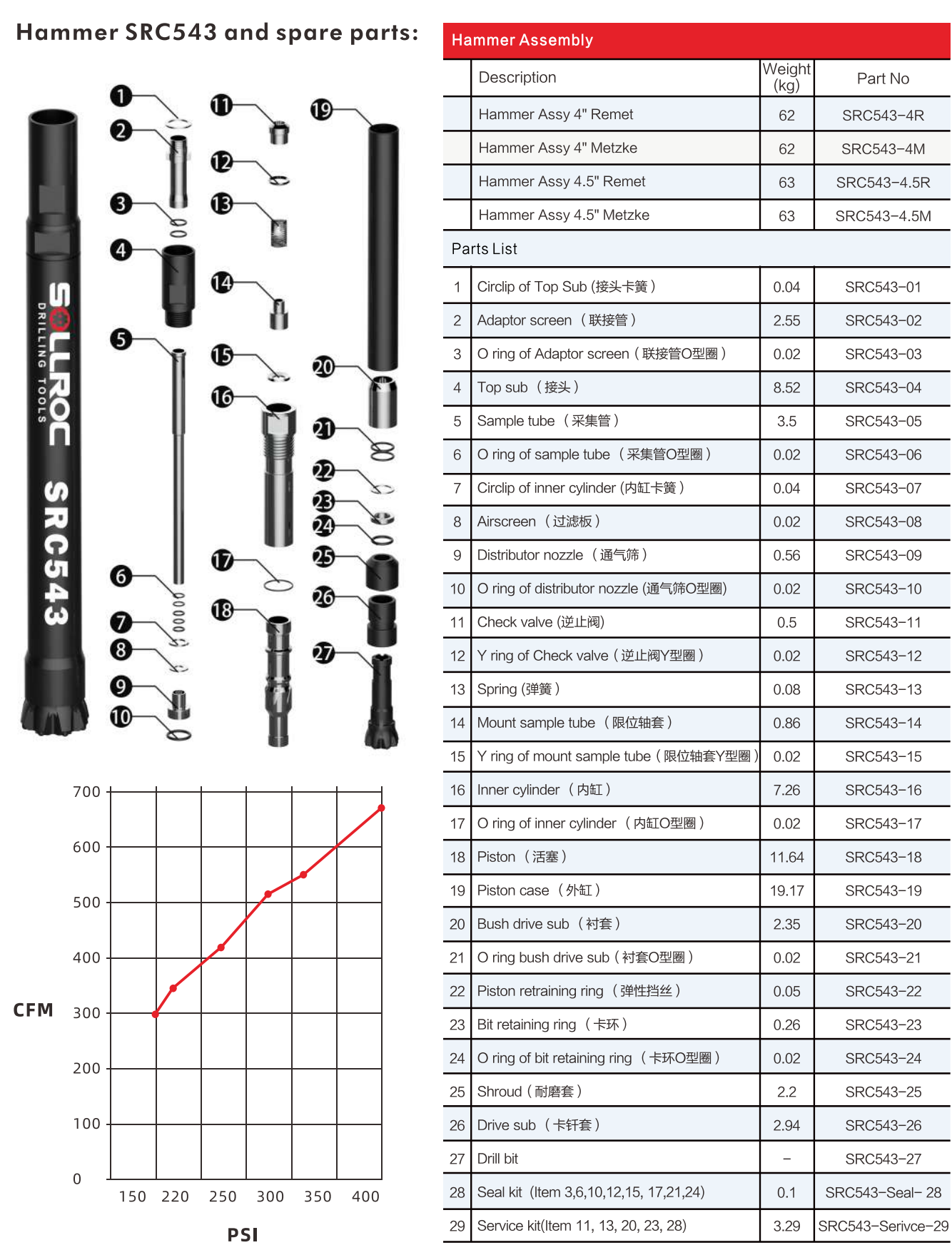

    Detailed Photo:


    About us:

    SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.


    Delivery Way:

    By Air, By express or By Sea
