98mm 3.86 Inch Shank DHD340A Dth Hammer For Blasting

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	DHD340A
Certification :	SGS
Price :	500
Payment Terms :	T/T,
Supply Ability :	10000pcs/month
Delivery Time :	22-28 working days

Add to Cart

Product Details
Company Profile

98mm 3.86 Inch Shank DHD340A Dth Hammer For Blasting

External Diameter 98mm 3.86inch Shank DHD340A Hammer For Blasting

Technical parameter DHD340A DTH hammer:

shank	DHD340A
Length(less bit)	1030mm
External diameter	98mm
Top sub thread	API 2 3/8”REG
Weight(less bit)	42kg
Hole range	110mm-130mm
Working pressure	10-25bar
Impact rate at 17bar	28Hz
Recommended rotation speed	30-70rpm

Product introduction:

The down-the-hole impactor is used in conjunction with the down-the-hole drill bit to have high-efficiency and energy-saving tunneling capabilities. The down-the-hole impact drill bit has gradually become the driving equipment used in the drilling and mining industries. There are high wind pressure and low wind pressure. The low wind pressure DTH series are mainly used in quarries, mining, stone excavation, slope treatment, rock anchoring, underground mining, etc. Due to its low efficiency and high energy consumption, it has been gradually replaced by high- and medium-pressure down-the-hole drilling rigs. At present, it is mainly used for small aperture applications.

Product advantages:

1.The overall structural design is concise to minimize the probability of failure

2.Short overall length, light weight and good safety

3.The patented optimized matching design of the drill bit and the impactor maximizes the transmission efficiency of impact energy

4.The surface of the parts is treated with anti-fatigue strengthening treatment, which has a longer working life

5.Optimize impact contact surface, air chamber and impact frequency to achieve faster perforation efficiency

Application:

Product name	dth hammer
Application	Quarry
Color	Customer's Requirement
Usage	Ore Mining
Advantage	High Performance
Size	Standrad Size

Our DTH drilling tools range covers the most diverse applications in mining, natural resources exploration, water wells, quarries and civil works.

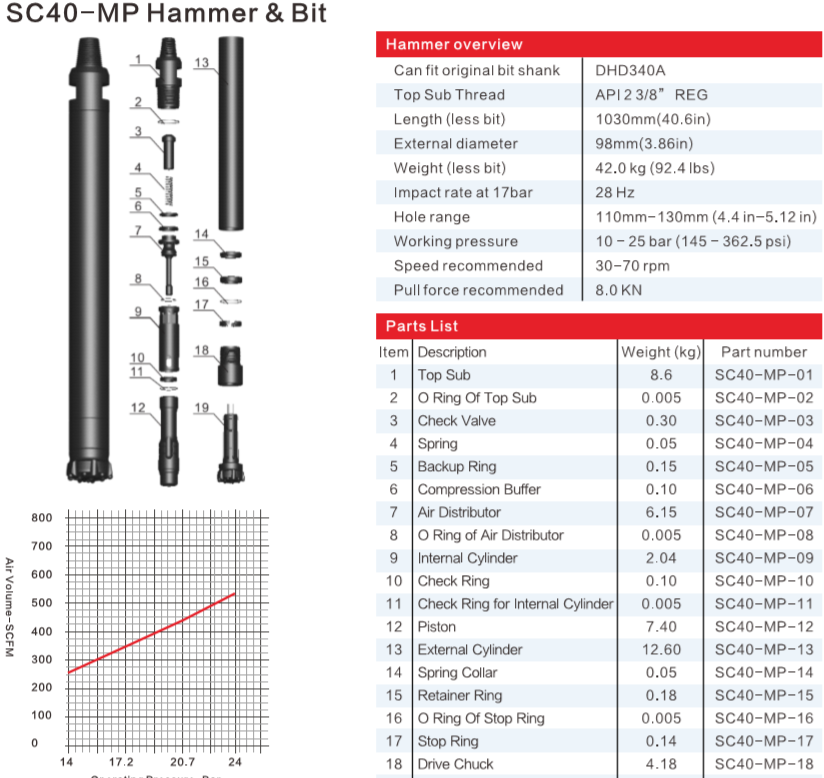

Structure picture:

Company information:

Changsha Sollroc Engineering Equipments Co., Ltd. mainly produces rock drilling tools, including down-the-hole hammers, down-the-hole drills, reverse circulation hammers, reverse circulation drills, drill pipes, tophammer button drills, taper drill bits, and tapers Shaped drills, extension drills, drill tails, casings, rock drills and drill pipes, etc., mainly used in mining, quarrying, prospecting, and road construction projects , Dam construction, slope anchoring, tunnel excavation and anchoring projects.

Detailed photo:

98mm 3.86 Inch Shank DHD340A Dth Hammer For Blasting
