Length 1083mm Blasting 99mm Down The Hole Hammer

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	SD4
Certification :	SGS
Price :	500
Payment Terms :	T/T,
Supply Ability :	10000pcs/month
Delivery Time :	22-28 working days

Add to Cart

Product Details
Company Profile

Length 1083mm Blasting 99mm Down The Hole Hammer

length 1083mm SD4 Hammer Down the Hole Drill Hammer For Blasting

Technical parameter SD4 DTH hammer:

shank	SD4
Length(less bit)	1083mm
External diameter	99mm
Top sub thread	API 2 3/8”REG
Weight(less bit)	40.9kg
Hole range	110mm-130mm
Working pressure	10-25bar
Impact rate at 17bar	28Hz
Recommended rotation speed	30-70rpm

Product introduction:

Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.

Product advantages:

1.The overall structural design is concise to minimize the probability of failure

2.Short overall length, light weight and good safety

3.The patented optimized matching design of the drill bit and the impactor maximizes the transmission efficiency of impact energy

4.The surface of the parts is treated with anti-fatigue strengthening treatment, which has a longer working life

Application:

Product name	dth hammer
Application	Quarry
Color	Customer's Requirement
Usage	Ore Mining
Advantage	High Performance
Size	Standrad Size

Our DTH drilling tools range covers the most diverse applications in mining, natural resources exploration, water wells, quarries and civil works.

Structure picture:

Company information:

Changsha Sollroc Engineering Equipments Co., Ltd. mainly produces rock drilling tools, including down-the-hole hammers, down-the-hole drills, reverse circulation hammers, reverse circulation drills, drill pipes, tophammer button drills, taper drill bits, and tapers Shaped drills, extension drills, drill tails, casings, rock drills and drill pipes, etc., mainly used in mining, quarrying, prospecting, and road construction projects , Dam construction, slope anchoring, tunnel excavation and anchoring projects.

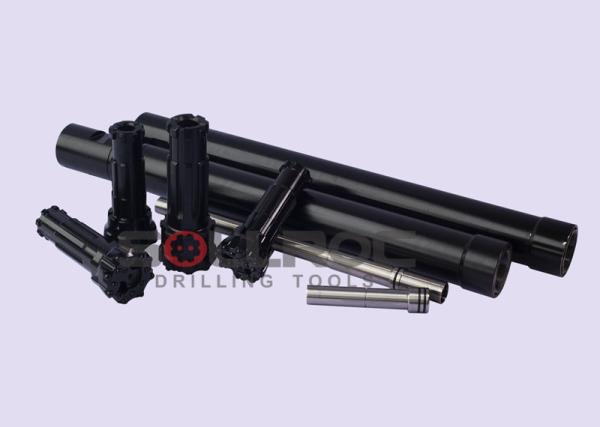

Detailed photo:

Length 1083mm Blasting 99mm Down The Hole Hammer
