3.5'' Shank MP35 Down The Hole Hammer For Surface Mining

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	MP35
Certification :	SGS
Price :	500
Payment Terms :	T/T,
Supply Ability :	10000pcs/month
Delivery Time :	22-28 working days

Add to Cart

Product Details
Company Profile

3.5'' Shank MP35 Down The Hole Hammer For Surface Mining

3.5'' Shank MP35 Hammer For Surface Mining And Well Drilling

Technical parameter MP35 DTH hammer:

shank	MP35
Length(less bit)	881mm
External diameter	85mm
Top sub thread	API 2 3/8”REG
Weight(less bit)	23.6kg
Hole range	95mm-110mm
Working pressure	7-25bar
Impact rate at 17bar	28Hz
Recommended rotation speed	30-70rpm

Product introduction:

Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.

Product advantages:

1. Ingenious Design, High Quality, High Performance and Long Service Life.

2. Lower Energy Consumption, High Impact Frequency and Superior Energy Transfer.

3. High Grade Alloy Steel and Advanced Heat Treatment offer Superior Wear Resistance.

4. Trouble Free and Easy Service with no special assembly or disassembly tools required.

Application:

DTH Hammer is one of key components for drilling equipment. They are powered by compressed air medium and supply continuous impact for bottom rocks with down-the-hole bit. They are widely used in ore drilling, surface mining,water well drilling, Geothermal drilling, foundation drilling and oil drilling.

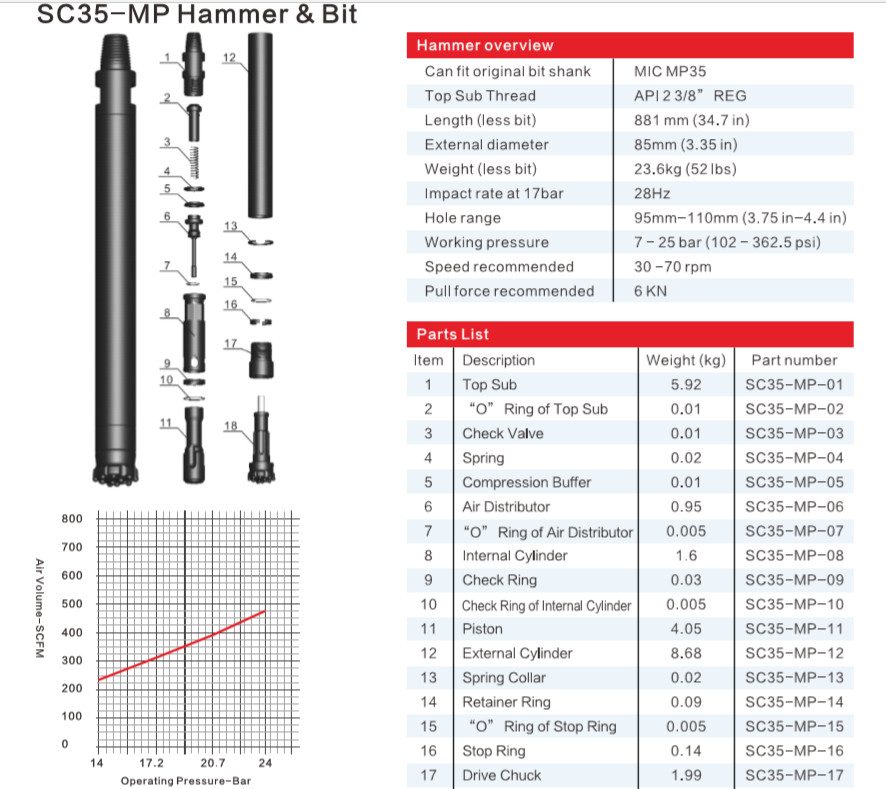

Structure picture:

Company information:

Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.

Detailed photo:
