OD82mm 3'' DHD3.5 Dth Hammer Water Well Drilling

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	DHD3.5
Certification :	SGS
Price :	500
Payment Terms :	T/T,
Supply Ability :	10000pcs/month
Delivery Time :	22-28 working days

Add to Cart

Product Details
Company Profile

OD82mm 3'' DHD3.5 Dth Hammer Water Well Drilling

OD82mm DHD3.5 Down Hole Hammer For Water Well Drilling

Product introduction:

Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.

DHD3.5 DTH hammer overview:

shank	DHD3.5
Length(less bit)	930mm
External diameter	82mm
Top sub thread	API 2 3/8”REG
Weight(less bit)	24.4kg
Hole range	90mm-105mm
Working pressure	1.0-1. 5Mpa
Impact rate at 1.4Mpa	28Hz
Recommended rotation speed	25-40r/min
Air consumption 1.0Mpa	4.5m³/min
Air consumption 1.5Mpa	9.0m³/min

Product advantages:

1.Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to inner structure of DTH hammer designed according to newest rock drilling theory.

2.Smooth performance and long service life of DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3.Precision machining using high quality materials ensures little breakdown and stable performance for a long time.

Application:

It can use for water well drilling,Mining,Blasting drilling ,construction and etc.

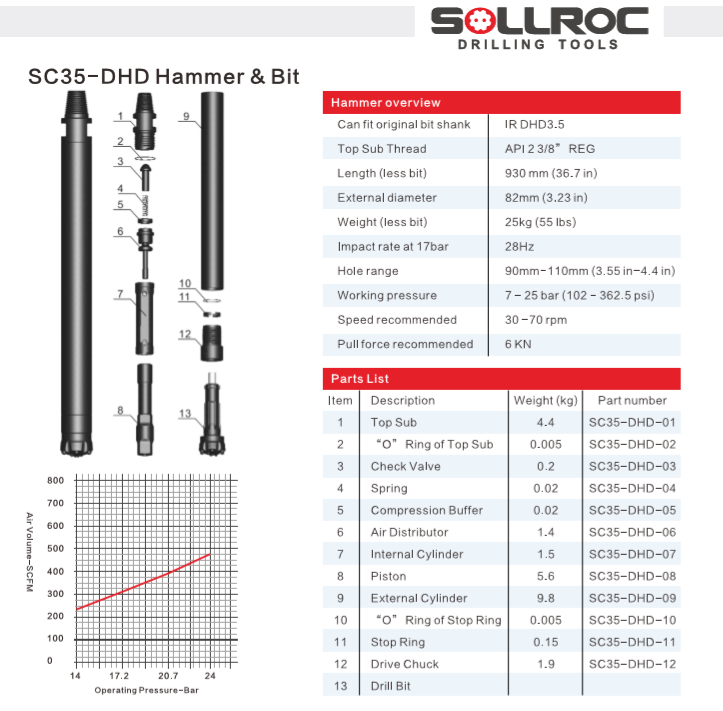

Structure picture:

Company information:

Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.

Detailed photo:
