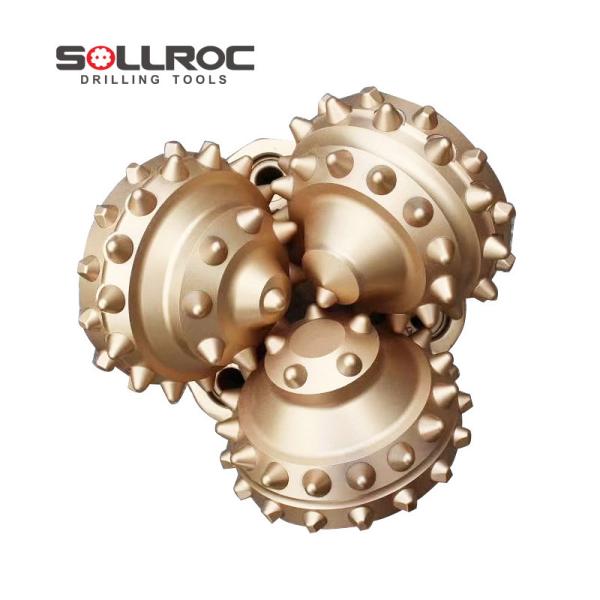

IADC635-251 9 7/8 Inch Tricone Drill Bit For Mining , Tricone Rock Bit

IADC635-251 9 7/8 Inch TCI Tricone Rock Roller Drill Bit for Mining

The TCI Tricone bits drilling for medium to hard rock formation.The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.

The hard formation TCI tricone bits can be used to drill hard and abrasive formation. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.

1.Brief introduction

Size	9 1/2 (241.3mm) tricone bit
IADC	635
Bearing Type	rubber/metal sealed bearing
Thread Connection	4 1/2 API reg pin
WOB(KN/mm)	0.4~1.1
RPM(r/min)	120~60
Applications	Medium to high abrasive formations, such as hard shale, hard limestone sandstone,
Applications	whinstone, flintstone, granite, quarts sandstone, hard dolomile, hard limestone, pyrite, et

More information about the tricone bit

Model	Steel tooth bit,TCI Bit
IADC CODE	116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
IADC CODE	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
available sizes:	From 2 7/8 to 26" larger sizes for hole opener bit ,reamer bit,roller cones
advantage	most favourable price and best qualtity
bearing type:	sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type
Formation or layer	soft ,medium soft ,hard,medium hard,very hard formation
Button size (extra features)	Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection
Material	Alloy steel ,carbide
Application	petroleum&gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

IADC CODE SELECTION
IADC	WOB	RPM	Application
IADC	(KN/mm)	(r/min)	Application
111/114/115	0.3-0.75	200-80	very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
116/117	0.35-0.8	150-80	very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
121	0.3-0.85	200-80	soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
124/125	0.3-0.85	180-60
131	0.3-0.95	180-80	soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
136/137	0.35-1.0	120-60
211/241	0.3-0.95	180-80	medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds.
216/217	0.4-1.0	100-60
246/247	0.4-1.0	80-50	medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
321	0.4-1.0	150-70	medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble
324	0.4-1.0	120-50
437/447/435	0.35-0.9	240-70	very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone
517/527/515	0.35-1.0	220-60	soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
537/547/535	0.45-1.0	220-50	soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
617/615	0.45-1.1	200-50	medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
637/635	0.5-1.1	180-40	hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble

Products Photos:

Quality warranty:

Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Transportation:
By air, By Express or By sea according to your requests
