DHD1120 Water Well Drilling Down The Hole Hammer With High
Environmental Protection
Product description
High Pressure DTH hammer DHD1120 is very popular in international
mining drilling and rock excavation field.
Product introduction:
Sollroc's DTH hammer consist of only two moving parts: the piston
and the valve. With so few moving parts, the smart solution
delivers reliable high performance drilling in the most challenging
conditions. Water, at up to 180 bar delivery pressure, is used to
power the impact mechanism of the hammer at a high frequency rate.
When the water leaves the hammer, it loses the pressure and keeps a
low flush velocity. This however is still adequate to bring any
cuttings to the surface and clean the borehole. Additionally, the
hydrostatic column, which is created above the hammer, helps to
keep the hole stable while preventing potential collapse. This also
prevents water from being drawn into the borehole, which increases
hole stability and prevents potential environmental issues.
DHD1120 DTH hammer overview
| shank | DHD1120 |
| Length(less bit) | 1880mm |
| External diameter | 275mm |
| Top sub thread | API 6 5/8"REG |
| Weight(less bit) | 474kg |
| Hole range | 305mm-445mm |
| Working pressure | 1.0-3.0Mpa |
| Impact rate at 1.4Mpa | 20Hz |
| Recommended rotation speed | 15-25r/min |
| Air consumption 1.0Mpa | 28m³/min |
| Air consumption 1.8Mpa | 50m³/min |
| Air consumption 2.4Mpa | 71m³/min |
Product features
1. good sealing effect to prevent water and rock cutting entering
to the hammer
2. high impact power
3. improved hole straightness.
4. Capable to withstand solids content in drilling fluids.
5. reliable performance in challenging ground conditions.
6. Simple design of the piston. Long life.
Sollroc produces the most efficient drilling hammers (DTH), built
for the most diverse applications: water drilling, construction,
mines etc. Our technology and unique design gives to our drilling
hammers high performance, in various types of formations.
Application
Sollroc offers a wide range of high performing drilling equipment
designed for percussive drilling. In fact, we offer the most
productive DTH hammers in the world. DTH drilling as a method is
growing in popularity in both foundation works and in well and
geothermal drilling. As the global redevelopment of urban areas
continues, this trend comes with a challenge - accessing and
drilling in populated areas without damaging the existing
structures around the work site. It is obvious that our customers
in geotechnical operations have very different demands on the
equipment than those working with high production drilling in, for
example, quarrying. The demand for application-tailored solutions
is increasing.

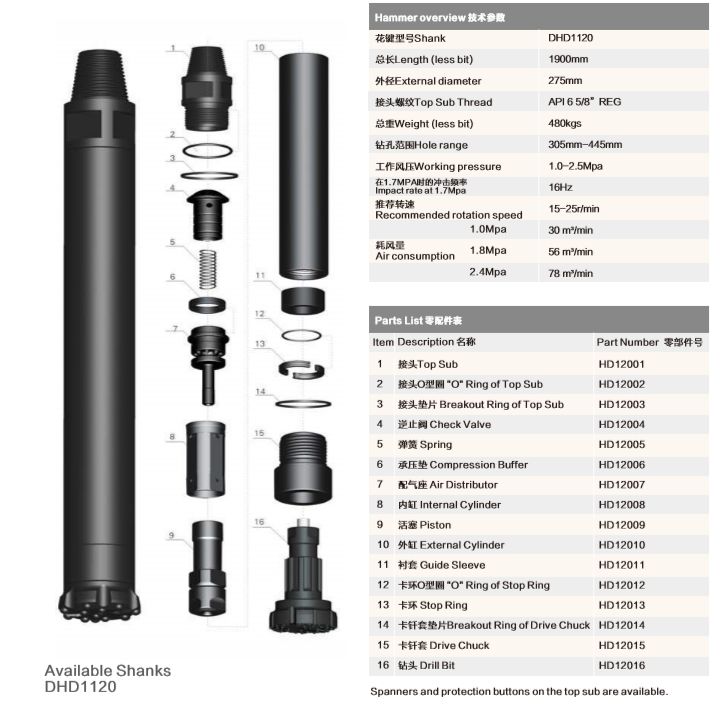

Structure picture
Company information
Sollroc , with more 10 years of experience ,is one of the
professional manufacturer and supplier of high performance rock
drilling tools,We are able to manufacture, export and supply our clients excellent
quality DTH Hammers like DTH Hammer Bits and RC Hammer. These
hammers are meticulously manufactured with utmost perfection by
utilizing superior quality raw materials and efficient machinery.
Sturdy in construction, the provided hammers are specifically
designed to suit high pressure drilling rigs. Also, the offered DTH
Hammers can be purchased from us in distinct technical
specifications at industry leading rates.
Sollroc is specialized in designing, manufacturing and developing
equipments and accessories for standard models as well as the
special needs of clients and provides them with the best
suggestions and solutions. We practice strict and stringent quality
control during manufacturing and adhered to recognized and approved
quality control systems. Each of our products follows the quality
requirements and procedures to ensure finished products are durable
and superior up to standard.
