Product description
High Pressure DTH hammer DHD380 is very popular in international
mining drilling and rock excavation field.
Product introduction:
Sollroc produces the most efficient drilling hammers (DTH), built
for the most diverse applications: water drilling, construction,
mines etc. Our technology and unique design gives to our drilling
hammers high performance, in various types of formations.
The valve system of our hammers is essential for efficient DTH
drilling: increase the compressed air power delivered to the bit,
providing efficient utilization of the air and reducing the service
requirements. Our technology minimizes turbulence and backflow,
allowing the piston to transfer more energy to the bit and hit the
bit harder. That means faster penetration rates and more
productivity.
DHD380 DTH hammer overview
| shank | DHD380 |
| Length(less bit) | 1359mm |
| External diameter | 185mm |
| Top sub thread | API 4 1/2"REG |
| Weight(less bit) | 175kg |
| Hole range | 195mm-254mm |
| Working pressure | 1.0-3.0Mpa |
| Impact rate at 1.4Mpa | 22Hz |
| Recommended rotation speed | 15-25r/min |
| Air consumption 1.0Mpa | 12m³/min |
| Air consumption 1.8Mpa | 22m³/min |
| Air consumption 2.4Mpa | 28m³/min |
Product features
1. improved hole straightness.
2. Capable to withstand solids content in drilling fluids.
3. reliable performance in challenging ground conditions.
4. Simple design of the piston. Long life.
5. simple structure, easy to maintain and disassembly
6. Average drill speed
Deliver maximum energy to drilling bit, which enables fast drilling
speed and low air consumption due to the special inner structure of
the DTH hammer series designed according to the newest rock
drilling theory. Deliver smooth performance and long service of the
DTH hammer series due to the high quality tungsten carbide steel
materials and the advanced processing technology. Low problem rate
and easy maintenance due to the simple, reliable and easy assemble
and disassemble inner structure of hammer.
Application
Sollroc offers a wide range of high performing drilling equipment
designed for percussive drilling. In fact, we offer the most
productive DTH hammers in the world. DTH drilling as a method is
growing in popularity in both foundation works and in well and
geothermal drilling. As the global redevelopment of urban areas
continues, this trend comes with a challenge - accessing and
drilling in populated areas without damaging the existing
structures around the work site. It is obvious that our customers
in geotechnical operations have very different demands on the
equipment than those working with high production drilling in, for
example, quarrying. The demand for application-tailored solutions
is increasing.

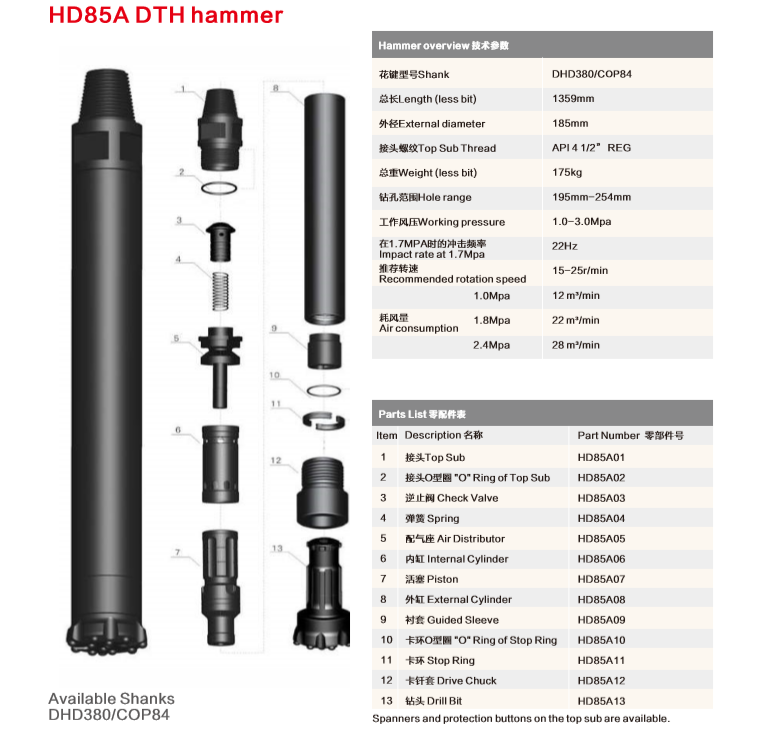

Structure picture
Company information
Sollroc , with more 10 years of experience ,is one of the
professional manufacturer and supplier of high performance rock
drilling tools,We are able to manufacture, export and supply our clients excellent
quality DTH Hammers like DTH Hammer Bits and RC Hammer. These
hammers are meticulously manufactured with utmost perfection by
utilizing superior quality raw materials and efficient machinery.
Sturdy in construction, the provided hammers are specifically
designed to suit high pressure drilling rigs. Also, the offered DTH
Hammers can be purchased from us in distinct technical
specifications at industry leading rates.
Sollroc is specialized in designing, manufacturing and developing
equipments and accessories for standard models as well as the
special needs of clients and provides them with the best
suggestions and solutions. We practice strict and stringent quality
control during manufacturing and adhered to recognized and approved
quality control systems. Each of our products follows the quality
requirements and procedures to ensure finished products are durable
and superior up to standard.
