DHD360 DTH Bits DTH Drill Bits For Water Well Mining Construction Works

DTH Drill Bits DHD360 DTH Bits for Water Well & Mining & Construction Works

Product description

Down-the-hole (DTH) drilling has made it easier for contractors to drill wells faster and more efficiently, and to transition from dirt boring to rock boring just by adding a compressor and hammer to the drill bit.

A down-the-hole hammer (DTH hammer) is a tool that can be attached to the end of a drill string and inserted into a bore. It's a small jack hammer used to break hard rock into small particles that can be flushed away by the DTH hammer's air exhaust

Product Advantages:

1. Better borehole quality and accuracy
2. High performance drilling
3. Safer drilling in sensitive formations
4. cost-efficient and environmentally friendly drilling

DHD360 DTH drill bit specification:

For 6" hammer DTH bits shank	Bit Dia. (mm)		No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
For 6" hammer DTH bits shank	mm	inch	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
DHD360/COP64	152	6"	2	8×φ16	8×φ16	26.0	DHD360-152
	165	6 1/2"	2	8×φ18	8×φ16	28.0	DHD360-165
	178	7"	2	8×φ18	8×φ18	30.5	DHD360-178
	190	7 1/2"	3	9×φ18	9×φ16	34.0	DHD360-190
	203	8"	3	9×φ18	9×φ18	36.0	DHD360-203

6'' other shank bit specification:

For 6" hammer DTH bits shank	Bit Dia. (mm)		No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
For 6" hammer DTH bits shank	mm	inch	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
DHD360/COP64	152	6"	2	8×φ16	8×φ16	26.0	DHD360-152
	165	6 1/2"	2	8×φ18	8×φ16	28.0	DHD360-165
	178	7"	2	8×φ18	8×φ18	30.5	DHD360-178
	190	7 1/2"	3	9×φ18	9×φ16	34.0	DHD360-190
	203	8"	3	9×φ18	9×φ18	36.0	DHD360-203
SD6	152	6"	2	8×φ16	8×φ16	26.0	SD6-152
	165	6 1/2"	2	8×φ18	8×φ16	28.0	SD6-165
	178	7"	2	8×φ18	8×φ18	31.0	SD6-178
	190	7 1/2"	3	9×φ18	9×φ16	34.0	SD6-190
	203	8"	3	9×φ18	9×φ18	36.0	SD6-203
QL60	152	6"	2	8×φ16	8×φ16	25.0	QL60-152
	165	6 1/2"	2	8×φ18	8×φ16	27.0	QL60-165
	178	7"	2	8×φ18	8×φ18	28.5	QL60-178
	190	7 1/2"	3	9×φ18	9×φ16	31.0	QL60-190
	203	8"	3	9×φ18	9×φ18	33.0	QL60-203
Mission60	152	6"	2	8×φ16	8×φ16	22.0	M60-152
	165	6 1/2"	2	8×φ18	8×φ16	23.0	M60-165
	178	7"	2	8×φ18	8×φ18	24.0	M60-178
	190	7 1/2"	3	9×φ18	9×φ16	25.0	M60-190
	203	8"	3	9×φ18	9×φ18	28.0	M60-203

Face Shape Selection:

1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
3. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

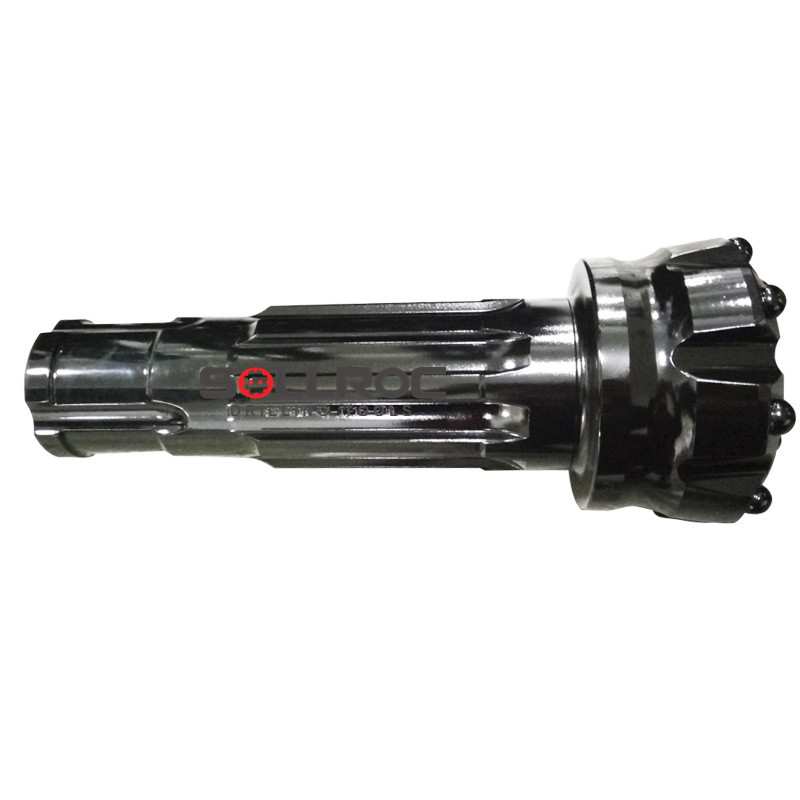

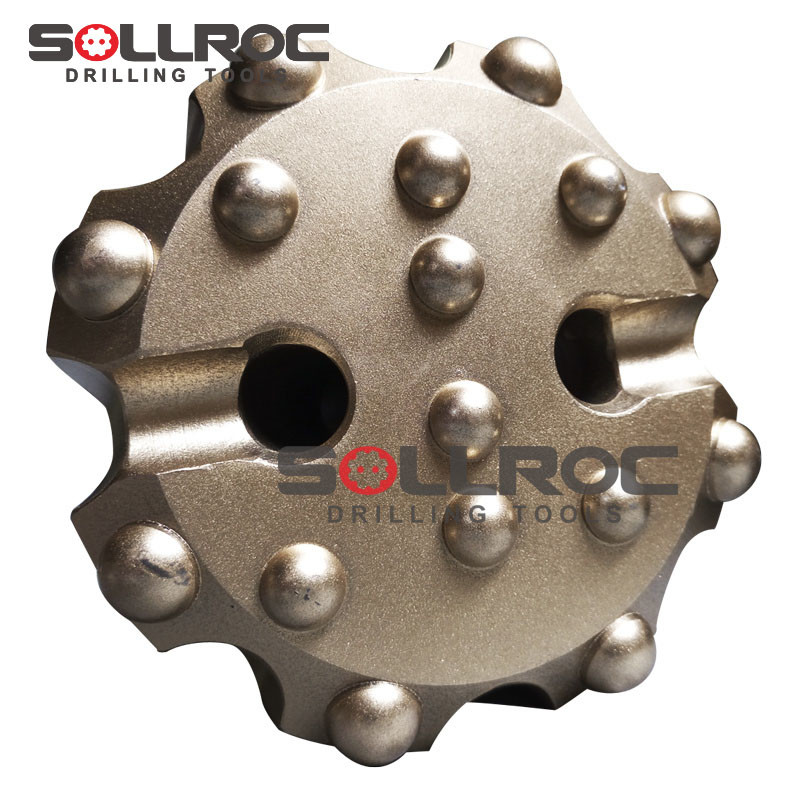

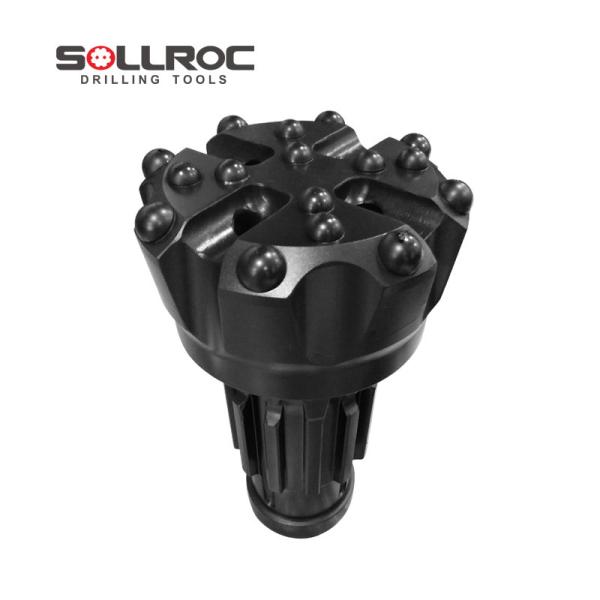

Detail photos:

DHD360 DTH Bits DTH Drill Bits For Water Well Mining Construction Works
