PR54/PR54R Centre Sample Recovery RC Rock Hammer for Mining Exploration

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	PR54 RC Hammer
Certification :	SGS
Price :	negotiate
Payment Terms :	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :	5000pcs per month
Delivery Time :	15-22 days

Add to Cart

Product Details
Company Profile

PR54/PR54R Centre Sample Recovery RC Rock Hammer for Mining Exploration

PR54/PR54R Centre Sample Recovery RC Rock Hammer for Mining Exploration

Product Introduce:

RC series reverse circulation DTH hammer is the latest developed product of our company.It's mainly used for deep exploration drilling and core sampling.Due to its high-quality sample results, and speed of operation for shallower holes, reverse circulation drilling is becoming increasingly popular around the globe. In fact, it's the most widely accepted chip sampling method. This is largely due to our innovative designs, and we're continuing to develop the capabilities of this valuable sampling method. Partner with SOLLROC for your reverse circulation down hole hammer drilling.

Adavantages:

1. High penetration rates in all rock conditions
2. Quality samples from areas of lost circulation
3. Large, uncontaminated sample return
4. Increased longevity means lower cost per meter
5. The option of diamond-enhanced carbide bits for deep and abrasive drilling conditions, with no bits sharpening required.

Specification:

PR54hammer technical date:

Length (less bit)	1294mm
Weight (less bit)	84.5kg
External diamater	φ130mm
Bit shank	PR54
Hole range	φ135-φ150
Connection thread	4.5" Remet 4.5" Metzke
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	16 m³/min
	2.4 Mpa	22 m³/min
	3.0 Mpa	28 m³/min

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3.5-Y	SRC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC3-E531	SRC531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC4-E004	SRC004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	SRC542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	SRC543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	SRC545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	SPR40(SPR040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	SPR52/SPR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-E547	SRC547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	SPR54(SRC054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

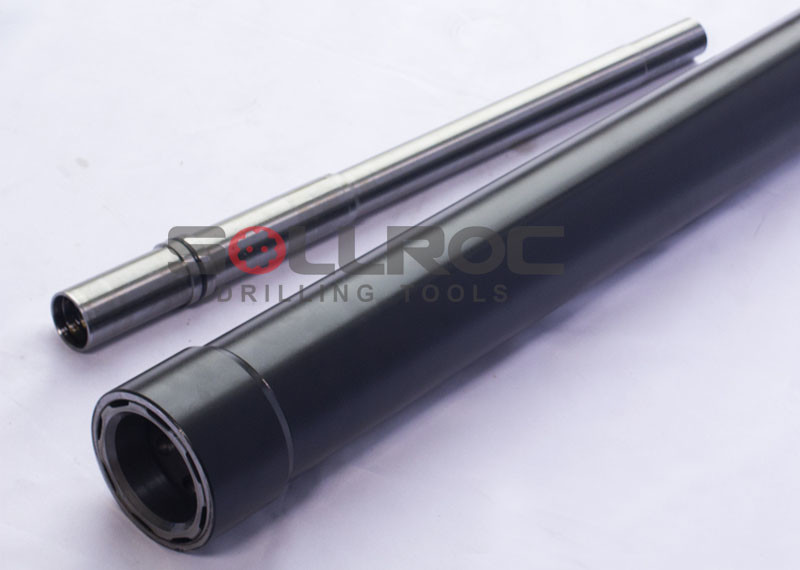

Detailed Photo:

PR54/PR54R Centre Sample Recovery RC Rock Hammer for Mining Exploration

Delivery Way:

By Air, By express or By Sea

About us:

Our company is specialising in drilling parts for decades. We have exported to more than 30 countries all over the world,such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

For drilling parts, we have the follwings: like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.

We have rich experience in this field of DTH hammers and bits for 20 years.
