Carbide Buttons PR54 RC Button Bit 136mm For Mining Exploration Drilling

Product Categories

DTH Drilling Tools [69]
Down The Hole Hammer [167]
DTH Drill Bits [166]
DTH Drill Pipe [58]
Reverse Circulation Hammer [134]
RC Drill Bit [129]
Dual Wall RC Drill Pipe [20]
Symmetrix Overburden Drilling System [7]
ODEX Drilling System [28]
Drag Drill Bit [50]
Top Hammer Drilling Tools [64]
Tapered Button Bits [12]
Diamond Core Drilling Tools [12]
Button Bit Grinder [12]
Tricone Drill Bit [18]

Changsha Sollroc Engineering Equipments Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Carbide Buttons PR54 RC Button Bit 136mm For Mining Exploration Drilling

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	PR54 Bit
Certification :	SGS
Price :	negotiate
Payment Terms :	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :	5000pcs per month
Delivery Time :	15-22 days

Add to Cart

Product Details
Company Profile

Carbide Buttons PR54 RC Button Bit 136mm For Mining Exploration Drilling

136mm PR54 RC Button Bit with Carbide Buttons for Mining Exploration Drilling

Product Introduce:

RC, or reverse circulation, drilling is a tried and true drilling method in certain circumstances. Drillers usually use it on large-diameter holes because it is faster and easier to clean the hole. The fluid and cuttings flow up the drill pipe and down the annulus. In softer formations, this causes less washout and makes sampling faster and more accurate because cuttings are not contaminated by sloughing formation off the hole walls. They also come up the drill pipe very fast, giving an accurate formation log.

Adavantages:

1. Achieves greater penetration in hard rock than air core drilling,
2. Ideal for harsh environments.
3. Reduced risk of cross-contamination.
4. Faster and more efficient, reducing costs and providing greater returns.

5. Reduced man-hours at the drill with decreased exposure to potential accidents.
6. Requires less water than diamond drilling.

Specification:

RC bits Model RC5.5-P54/P54R for shank PR54/PR54R

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	19.0	RC5.5-P54-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	19.3	RC5.5-P54-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	19.5	RC5.5-P54-143
146	5 3/4	8 x 16mm	6x16+3x14	35	2	144	19.6	RC5.5-P54-146

PR54 RC hammer specification

Length (less bit)	1294mm
Weight (less bit)	84.5kg
External diamater	φ130mm
Hole range	φ135-φ150
Connection thread	4.5" Remet 4.5" Metzke
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	16 m³/min
	2.4 Mpa	22 m³/min
	3.0 Mpa	28 m³/min

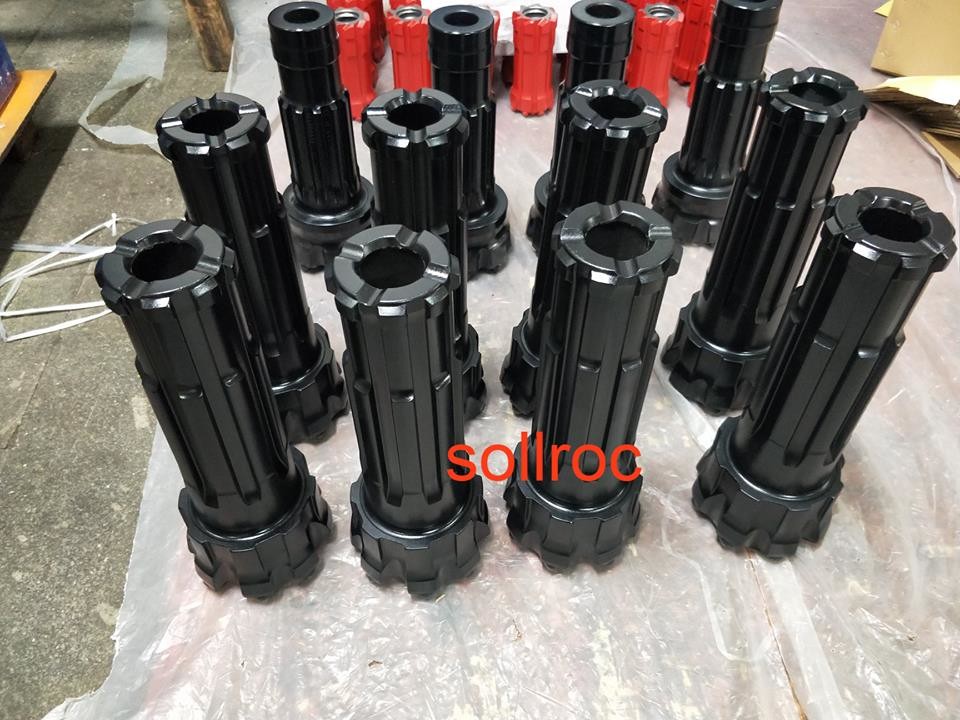

Detailed Photo:

Carbide Buttons PR54 RC Button Bit 136mm For Mining Exploration Drilling

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea
