Brand Name : | SOLLROC |
Model Number : | QL80,SD8,Mission80,DHD380 |
Certification : | SGS |
Price : | negotiable |
Payment Terms : | T/T, |
Supply Ability : | 10000 pieces/month |
Delivery Time : | 18 working days |

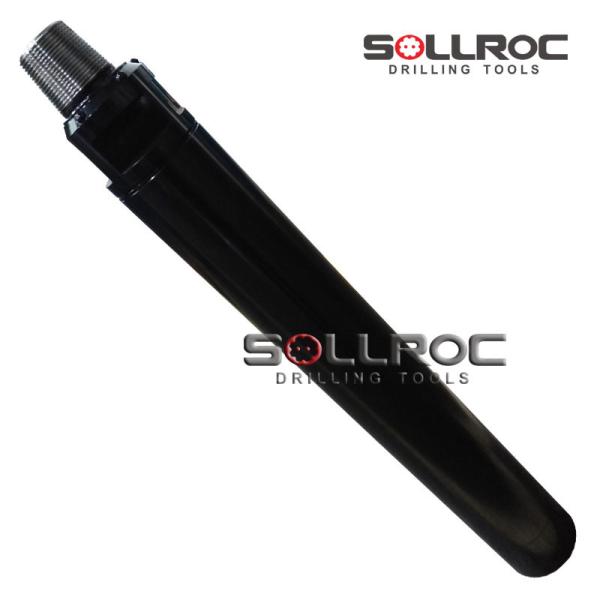

8'' QL80 DHD380 SD8 Mission80 Down The Hole DTH Drill Hammer for
Coal Mining
Product description
A down-the-hole drill, usually called DTH by most professionals, is
basically a mini jackhammer screwed on the bottom of a drill
string. The fast hammer action breaks hard rock into small flakes
and dust and is blown clear by the air exhaust from the DTH hammer.
Product Advantages:
1.Fewer internal components minimize service requirements.
2.Valveless, high frequency design ensures smooth operation.
3.Hardened wear sleeve for optimum wear resistance even in the most
abrasive conditions.
4.Multi-start threads on backhead and chuck ensure easy
coupling/uncoupling of hammer.
5.All critical internal components are heat treated under strict
control to maximize tool longevity.
DTH Hammer specification:
Model: DHD380, COP84, SD8, QL80
DHD380 COP84 | SD8 | QL80 | |
Length(less bit) | 1492mm | 1463mm | 1465mm |
Weight (less bit) | 188.0kg | 192.0kg | 182.00kg |
External diameter | 180mm | 180mm | 185mm |
Bits shank | DHD380 COP84 | SD8 | QL80 |
Bits diameter | 200-279mm 7 7/8" - 11" | 200-279mm 7 7/8" - 11" | 200-279mm 7 7/8" - 11" |
Connection thread | API 4 1/2" Reg | API 4 1/2" Reg | API 4 1/2" Reg |
Air pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
Face shape Features
Drop Center
For high penetration rates in soft to medium hard and fissured rock
formations. Low to medium air pressures. Maximum hole deviation
control.
Concave Face
The all-round application bit face special for medium hard and
homogenerous rock formations. Good hole deviation control and good
flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to
medium air pressures. It is the most resistance to steel wash, and
may reduce the load and wear on the gauge buttons, but poor hole
deviation control.
Flat Face
This kind of face shape is suitable for very hard and abrasive rock
formations in applications with high air pressures. Good
penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in
medium to hard rock formations. Designed for high air pressures and
good resistance to steel wash step gauge bit.
Product application
At present, DTH drilling tool is widely used in underground mining,
quarries, hydraulic and Hydro-Power Engineering, water well
drilling, Mineral exploration, anchoring hole drilling, geothermal
engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
