Thread Remet / Metzke RC Drill Hammer 116mm Dia For Exploration Drilling

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	RE543 RC Hammer
Certification :	SGS
Price :	negotiate
Payment Terms :	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :	5000pcs per month
Delivery Time :	15-22 days

Add to Cart

Product Details
Company Profile

Thread Remet / Metzke RC Drill Hammer 116mm Dia For Exploration Drilling

4.5'' Shank RE543 RC Hammer with Thread Remet/Metzke for Exploration Drilling

Product Introduce:

Reverse circulation hammers are specifically designed for all kinds of exploration drilling, like deep hole and in-pit grade control applications. when you are exploring potential sites or working an existing mine, RC hammer will guarantee high performance, exceptional reliability and dependable support.

Adavantages:

1. Manufactured using premium hardened metals for long life;
2. Maximum material recovery, up to 98%;
3. No cross contamination of samples;
4. Handles injection of water, foam, oil, and polymers without performance loss;
5. Maximum delivers drilling under water.

Specification:

RE543 Hammer

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC4.5-E543	SRC543	113-135	116	1191	63	3.5" / 4"Remet 4" Metzke	1.5-3.5Mpa

Other size hammer

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3.5-Y	SRC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC3-E531	SRC531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC4-E004	SRC004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	SRC542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	SRC543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	SRC545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	SPR40(SPR040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	SPR52/SPR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-E547	SRC547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	SPR54(SRC054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

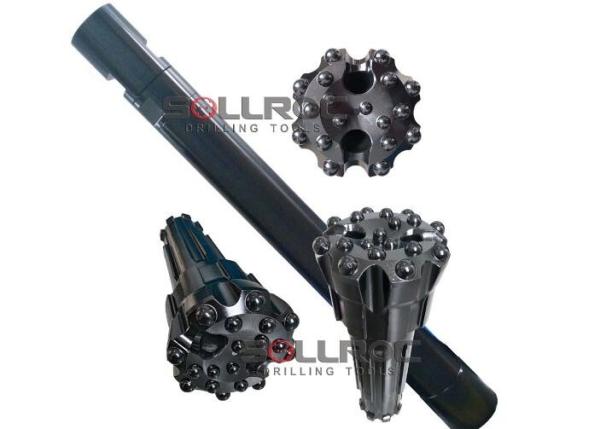

Detailed Photo:

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea
