3.5'' SRC3.5Y RC Hammer For Gold Mining Exploration

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	SRC3.5Y
Certification :	SGS
Price :	negotiate
Payment Terms :	L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :	5000pcs per month
Delivery Time :	15-22 days

Add to Cart

Product Details
Company Profile

3.5'' SRC3.5Y RC Hammer For Gold Mining Exploration

3.5'' SRC3.5Y Gold Mining Exploration Sample Collecting RC Hammer for RC Drilling

Product Introduce:

RC drilling uses a dual-walled drill pipe is used to achieve circulation, with compressed air getting injected between the tubes to flush the cuttings from the hole and up through the inner tube. The cuttings travel back up the tube to the surface, into a cyclone, where they go over a splitter that delivers the samples into a sample bag.

Specification:

SRC3.5Y hammer

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3-E531	RE531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC3.5-Y	RC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC4-E004	RE004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	RE542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	RE543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	RE545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	PR40(RE040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	PR52/PR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-E547	RE547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	PR54(RE054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

RC bits shank SRC3.5Y

Diameter		No. x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.
mm	inch	Gauge Button	Front Button	Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.
92	3 5/8	6 x 14mm	6 x 12mm	35	2	90	6.1	SRC3.5Y-92
95	3 3/4	6 x 14mm	6 x 12mm	35	2	93	6.3	SRC3.5Y-95

Adavantages:

1. the samples extracted by RC drilling are reliable and free of contaminants
2. the method is timely and cost-efficient
3. it is well-suited for difficult terrains
4. it has high penetration rates
5. it has minimal environmental impact.

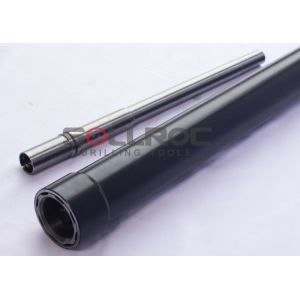

Detailed Photo:

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.

Delivery Way:

By Air, By express or By Sea
