Product description
Revirse circulation drilling is a technique of drilling that uses
dual wall drill rods that consist of an outer drill rod with an
inner tube. By using compressed air to extract rock fragments
sample,the samples travel through rods to a sample splitter at
surface, avoiding all contact between the samples and the borehole
wall that allows samples to be retrieved with minimal
contamination,which is mainly used in deep hole exploration and
mining grade control.

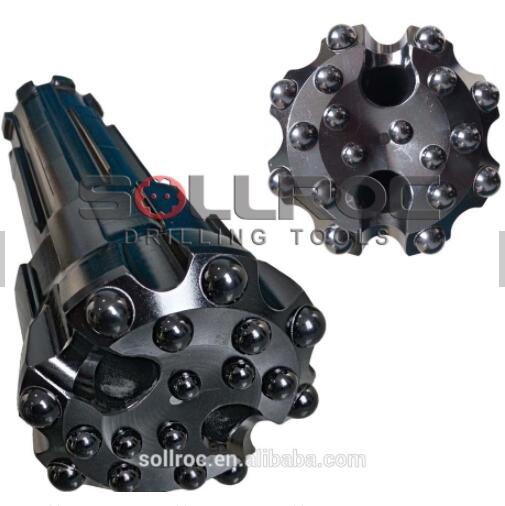

RC bits Model RC5-P40 for shank PR40
| Diameter | No x Button diameter mm | Button angle | Flushing holes | Shroud Dia mm | Weight (kg) | Part No |
| mm | inch | Gauge Button | Front Button |
| 124 | 4 7/8 | 8 x 14mm | 8 x 13mm | 35 | 2 | 122 | 14.5 | RC5-P40-124 |
| 127 | 5 | 8 x 14mm | 8 x 14mm | 35 | 2 | 125 | 14.7 | RC5-P40-127 |
| 130 | 5 1/8 | 8 x 16mm | 8 x 14mm | 35 | 2 | 128 | 14.9 | RC5-P40-130 |
| 133 | 5 1/4 | 8 x 16mm | 6x14+3x14 | 35 | 2 | 131 | 15.0 | RC5-P40-133 |
| 138 | 5 7/16 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 136 | 15.8 | RC5-P40-138 |
| 140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 16.0 | RC5-P40-140 |
Product Features
1. Reverse Circulation bit is well known for its high wear
resistance on medium-hard to hard abrasive rock formations
.Featuring spherical tungsten carbide inserts that is known to have
strong configuration against carbide fracture.
2. Recommended for eliminating hole deviation.
3. Widely used drifting and tunneling.
4. Bit face design is ideal for medium-hard to hard abrasive rock.
SOLLROC RC bits specifications
1. 3" RC Bits: Dia. 86mm-102mm shank RE531
2. 4'' RC Bits: Dia. 114mm-127mm Shank type: RE004
3. 4.5" RC Bits: Dia. 121mm-133mm Shank type: RE542, RE543
4. 5'' RC Bits: Dia. 124mm-138mm Shank type: RE545, PR40
5. 5.5" RC Bits: Dia. 133mm-159mm Shank type: PR52, RE547, PR54,
M5456
Applications
RC hammers and bits are used in hole drilling in mines, hydrology
and water well, geothermal well, geothermal air conditioning well,
geologic exploration, complicated gravel stratum, etc. Especial suitable for complicated formation (Formation loose,
difficult to drilling and unstable of hole wall), exhausting for
deep hole, environment protection.
Reverse circulation (RC) drilling uses a bit attached to a
down-hole hammer to produce a hole. Unlike diamond drilling, RC
drilling produces samples of rock cuttings rather than a sample of
rock core. The down-hole hammer is powered by compressed air, which
also acts as the medium bringing the drill cuttings up to surface.
It is mainly used in deep hole exploration and mining ore grade
control.
Company information
Sollroc , with more 10 years of experience ,is one of the
professional manufacturer and supplier of high performance rock
drilling tools like: DTH hammers and bits, RC hammers and bits, DTH
drill rods and top hammer drilling tools. Our tools are widely used
in different drilling applications including mining, quarrying,
water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing
equipments and accessories for standard models as well as the
special needs of clients and provides them with the best
suggestions and solutions. We practice strict and stringent quality
control during manufacturing and adhered to recognized and approved
quality control systems. Each of our products follows the quality
requirements and procedures to ensure finished products are durable
and superior up to standard.
