Product Description
Drag bit is used in soft to medium formation such as sand, clay, or
some soft rock for water well drilling, mining, geothermal,
environmental and exploration drilling. When the DTH hammer or
tricone bit lose their effectiveness and then the drag bit is used,
the cleaning of the hole is realized by the injection of air or
water. They are not suitable in coarse gravel or hard rock
formations.
|
Size | Thread | Approx.weight (lbs. ) |
2 3/4 - 3 1/2 | N - Rod | 3 |
3 1/2 - 4 3/4 | 2 3/8" API REG | 4 - 6.7 |
4 7/8 - 5 1/8 | 2 3/8" API REG | 8.4 - 8.7 |
5 1/4 - 5 1/2 | 2 3/8" API REG | 8.8 - 9.5 |
5 5/8 - 6 | 2 3/8 , 3 1/2 API Pin | 9.4 - 10.6 |
6 1/8 - 6 1/4 | 2 3/8 , 3 1/2 API Pin | 10.7 - 17 |
6 1/2- 6 3/4 | 2 3/8 , 3 1/2 API Pin | 18 - 18.6 |
5 1/2 - 6 3/4 | 2 3/8 , 3 1/2 API Pin | 19 - 20.5 |
6 7/8 - 7 7/8 | 2 3/8 , 3 1/2 API Pin G | 21.2 - 22.7 |
8 - 9 | 3 1/2, 4 1/2 API Pin | 22.8 - 23.4 |
9 1/8 - 10 7/8 | 3 1/2, 4 1/2 API Pin | 23.6 - 31.3 |
7 7/8 - 8 7/8 | 3 1/2, 4 1/2 API Pin | 30 - 33.5 |
9 - 9 7/8 | 3 1/2, 4 1/2 API Pin G | 34.5 - 36 |
7 7/8 - 9 7/8 (4 wing) | 3 1/2, 4 1/2 API Pin | 25.6 - 28.2 |
7 7/8 - 10 (4 wing) | 3 1/2, 4 1/2 API Pin G | 44.5 - 50.7 |
10 5/8 -11 | 3 1/2 4 1/2 API Pin | |
12 -17 1/2 | 6 5/8" API REG Pin | |
Main features
1, All drag bits blades originate from high quality of heat treated
alloy steel forgings.;
2, Carbide inserts are individually brazed using 50% nickel silver
alloy;
3, Use high grade carbide inserts only;
4, All drag bits are built to the gauge tolerances.
Product application
Drag bit is a kind of economic drill bit used in soft formations
such as sand, clay, or some soft rock(not well for rough gravel) .
Dia.3” (89mm)~ 17 1/2”(444mm);
Connection threads: 2 3/8’’ API Reg, 2 7/8’’ API Reg, 3 1/2’’ API
Reg, 4 1/2’’ API Reg, 6 5/8’’ API Reg, 2 7/8’’ API IF, etc.
Wings: Three wings, four wings;
Type: Chevron and Step type

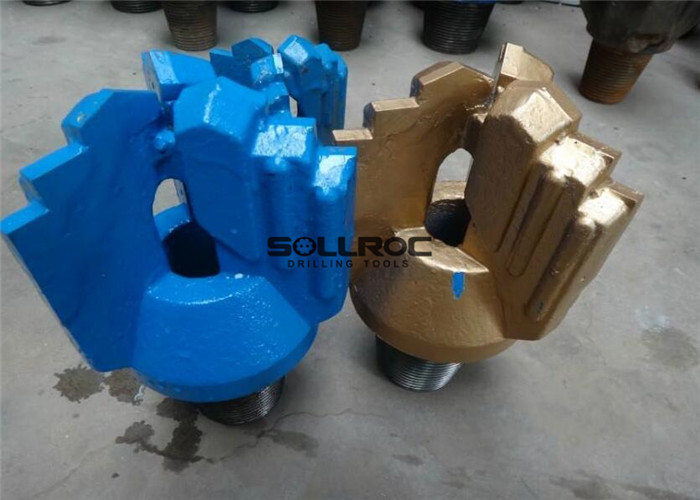

Detailed pictures
Packaging and shipping
Packaging: Carton+plywood case or as request.
Shipping: By air, by sea, by express as request.
