Product Description
Down th hole drill pipes play a significant role in all DTH
drilling, regardless of application, rock type, hole depth or drill
rig. The key features of a high quality DTH tube are durability,
accuracy and manageability. Sollroc DTH drill pipes are made of
superior alloy and the both thread ends are friction welded to the
seamless steel pipe.The high pressure air is delivered to DTH
hammer by DTH drill pipe, simultaneously it transfers the rotation
and press force to the DTH hammer.
DTH drilling tool is a kind of drilling system which uses
compressed air as motivation, makes drilling impact motivation
parts down the hole, to control the piston reciprocating motion by
the distribution device in the hammer, and then impacts the DTH bit
in the front of the hammer to transit the impacting power to the
bit. The DTH bit in the front of the hammer breaks the rock to
drill hole.
Diameter(mm) | Diameter(Inch) | Connection Thread | Length |
76mm | 3" | API 2 3/8"Reg | 1m-6m |
89mm | 3 1/2" | API 2 3/8"Reg | 1m-6m |
102mm | 4" | API 3 1/2" Reg | 1m-6m |
114mm | 4 1/2" | API 3 1/2" Reg | 1m-6m |
127mm | 5" | API 3 1/2" Reg | 1m~10m |
140mm | 5 1/2" | API 3 1/2" Reg | 1m~10m |
152mm | 6" | API 4 1/2" Reg | 1m~10m |
Features
1. Carefully selected seamless steel pipe and high quality alloy
steel for joint tools.
2. Precisely friction welded to ensure straightness and
concentrically.
3. Multiple precisely heat-treated tools joint.
4. Internally and externally upset drill rods are available.
Advantage
Applicable hard,very hard and medium soft rock formations. Reliable
quality, long service life, rare abnormal breakage during service
life. Good flushing effect to ensure high drilling rate.
Product application
At present, DTH drilling tool is widely used in underground mining,
quarries, hydraulic and Hydro-Power Engineering, water well
drilling, Mineral exploration, anchoring hole drilling, geothermal
engineering, Subway excavation, another civil engineering.

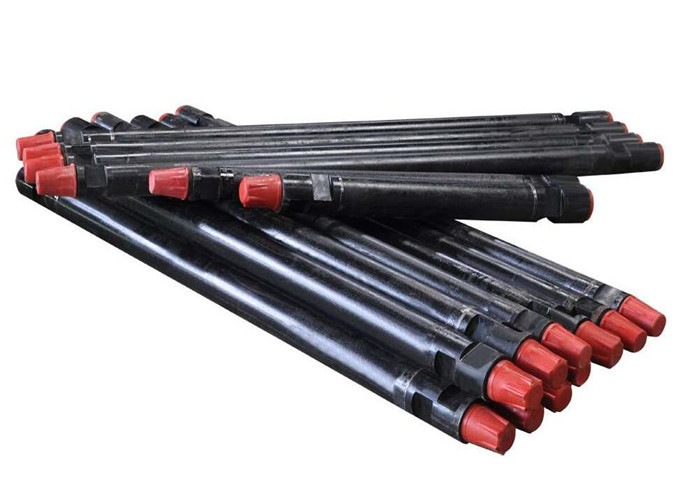

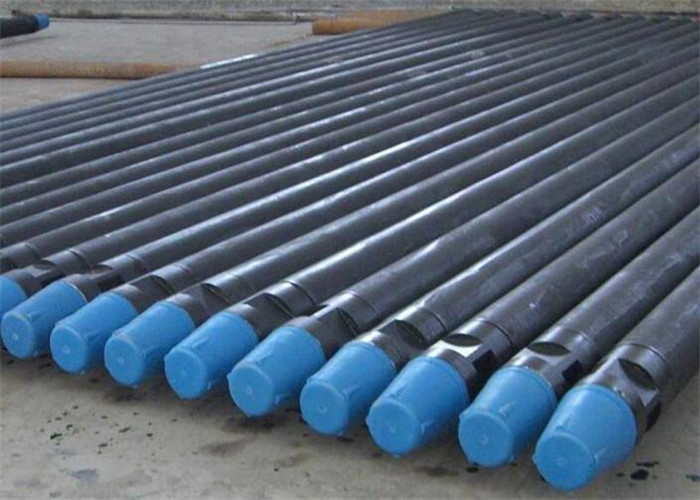

Detailed Pictures
Packaging and Shipping
Packaging: Plywood case+pallet, or as request.
Shipping: By air, by sea, by express, or as request.
Company Information
Sollroc is specialized in designing, manufacturing and developing
equipments and accessories for standard models as well as the
special needs of clients and provides them with the best
suggestions and solutions. We practice strict and stringent quality
control during manufacturing and adhered to recognized and approved
quality control systems. Each of our products follows the quality
requirements and procedures to ensure finished products are durable
and superior up to standard.
with more 10 years of experience ,is one of the professional
manufacturer and supplier of high performance rock drilling tools
like: DTH hammers and bits, RC hammers and bits, DTH drill rods and
top hammer drilling tools. Our tools are widely used in different
drilling applications including mining, quarrying, water well
drilling, geotechnical industries and etc.
