DTH Hammer Bits Cop54 DTH Bit Rock Drill Bits For Blasting Drilling , yellow

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	Cop54 dth bits
Certification :	SGS
Supply Ability :	2000 sets per month
Delivery Time :	3-4 weeks

Add to Cart

Product Details
Company Profile

DTH Hammer Bits Cop54 DTH Bit Rock Drill Bits For Blasting Drilling , yellow

DTH Hammer Bits Cop54 DTH Bit Rock Drill Bits For Blasting Drilling

We offer THE COMPLETE SOLUTION including DTH drill bits, DTH hammer, RC hammers, RC bits, ODEX system, Symemtrix system, drill rods, shank adapters, accessories and added value services.

- We offer top hammer equipment for every application, such as underground mining and quarries, road and construction.

- We've been involved in the mining industry for 10 years. We look for excellent performance in our products and service.

Product specifications:

For 5" hammer DTH bits shank	Bit Dia.		No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
For 5" hammer DTH bits shank	mm	inch	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
DHD350R/COP54	133	5 1/4"	2	7×φ16	6×φ14	15	DHD350-133
	140	5 1/2"	2	7×φ18	7×φ14	16	DHD350-140
	146	5 3/4"	2	8×φ18	7×φ14	17	DHD350-146
	152	6"	2	8×φ18	8×φ14	17.5	DHD350-152
	165	6 1/2"	2	8×φ18	8×φ16	18.5	DHD350-165
SD5	133	5 1/4"	2	7×φ16	6×φ14	15.5	SD5-130
	140	5 1/2"	2	7×φ18	7×φ14	16	SD5-140
	146	5 3/4"	2	8×φ18	7×φ14	16.5	SD5-146
	152	6"	2	8×φ18	8×φ14	17	SD5-152
	165	6 1/2"	2	8×φ18	8×φ16	19	SD5-165
QL50	133	5 1/4"	2	7×φ16	6×φ14	15.5	QL50-130
	140	5 1/2"	2	7×φ18	7×φ14	16	QL50-140
	146	5 3/4"	2	8×φ18	7×φ14	16.5	QL50-146
	152	6"	2	8×φ18	8×φ14	17	QL50-152
	165	6 1/2"	2	8×φ18	8×φ16	19	QL50-165
Mission50	133	5 1/4"	2	7×φ16	6×φ14	12.5	M50-130
	140	5 1/2"	2	7×φ18	7×φ14	13.5	M50-140
	146	5 3/4"	2	8×φ18	7×φ14	14	M50-146
	152	6"	2	8×φ18	8×φ14	14.4	M50-152
	165	6 1/2"	2	8×φ18	8×φ16	15	M50-165

Other Description:
(1) Made from premium quality nickel-alloy steel 25SiMnCrNi2MoVA for increased durability and wear characteristics, and YK 05 tungsten carbide as same grade as internationally well-known brand.
(2) Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand,
(4) Entire CNC processing procedure ensure the quality consistency and reliable.
(5) Military grade requirements of heat-treatment guarantee durability, Specific heat treatment standards and special "stress relief" processes ensure consistent performance.
(6) Designed for maximum performance and hole cleaning ability and high penetration rate.

Our bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84, Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380 QL40, QL50 , QL60, QL80.NUMA100, NUMA120, MISSION60,ect.

Matching the insert to the job requirements is essential in achieving the desired results. Each of the following buttons is ideal for different ground conditions, abrasion levels, PSIs and penetration levels. In general, the larger the number of gauge buttons the better overall performance, especially in hard rock.

Specification of dth hammer button bits:	Diameter: (mm)
1-2 inch low pressure DTH bits	64/70/76/80/82/90
3 inch high Air pressure DHT bits	85 / 90 / 95 / 100 / 105
4 inch high Air pressure DHT bits	105 / 110 / 115 / 120 / 127
5 inch high Air pressure DHT bits	133 / 140 / 146 / 152 / 165
6 inch high Air pressure DHT bits	152 / 165 / 178 / 190 / 203
8 inch high Air pressure DHT bits	195 / 203 / 216 / 254 / 305
10, 12 inch high Air pressure DTH bits	254/305/318/330/356/381

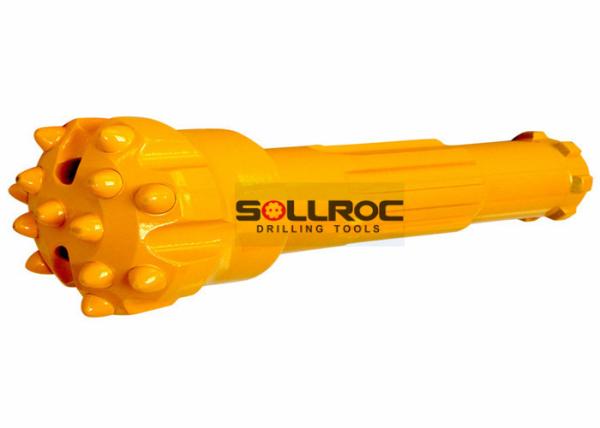

Product photos

DTH Hammer Bits Cop54 DTH Bit Rock Drill Bits For Blasting Drilling , yellow
