6" Down The Hole QL60 DTH Button Drill Bits For Rock Blasting
Drilling
Product specifications: QL60 dth bits
For 6" hammer
DTH bits shank | Bit Dia.
(mm) | No.
Air Holes | Gauge
Buttons | Front
Buttons | Weight
(Kg) | Part No. |
| mm | inch |
| DHD360/COP64 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26.0 | DHD360-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28.0 | DHD360-165 |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 30.5 | DHD360-178 |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34.0 | DHD360-190 |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 36.0 | DHD360-203 |
| SD6 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26.0 | SD6-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28.0 | SD6-165 |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 31.0 | SD6-178 |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34.0 | SD6-190 |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 36.0 | SD6-203 |
| QL60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | QL60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | QL60-165 |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | QL60-178 |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | QL60-190 |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | QL60-203 |
| Mission60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 22.0 | M60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 23.0 | M60-165 |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 24.0 | M60-178 |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 25.0 | M60-190 |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 28.0 | M60-203 |
We can also provide related products DTH button bits, ODEX,
symmetric overburden systems, slide block drilling systems, etc and
DTH drilling pipes for various thread API REG, API IF, BECO, etc

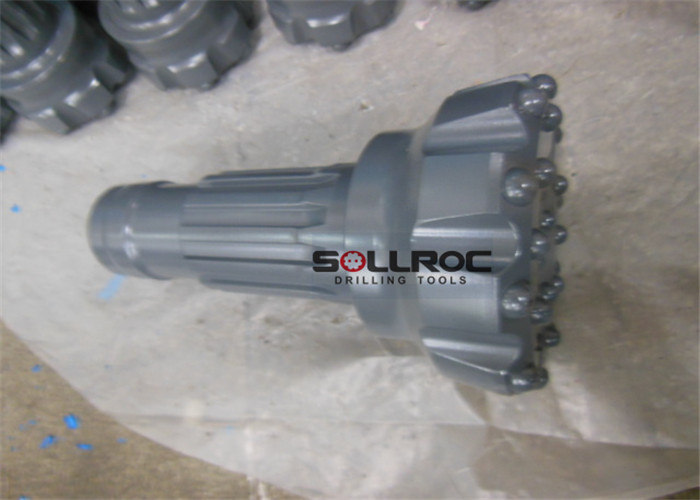

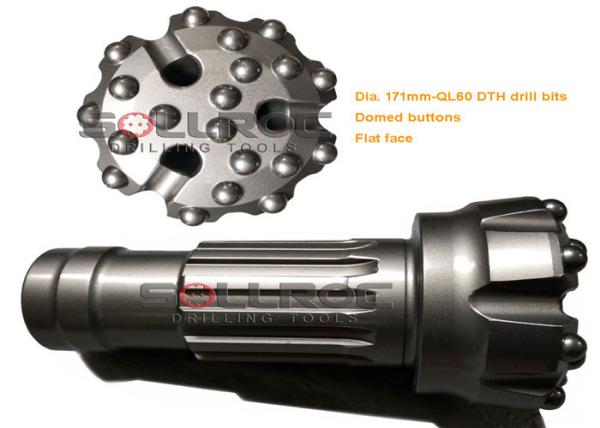

Product photos
(1) Made from premium quality nickel-alloy steel 25SiMnCrNi2MoVA
for increased durability and wear characteristics, and YK 05
tungsten carbide as same grade as internationally well-known brand.
(2) Apply "hot (thermal) -insertion" processing procedure to insert
the buttons as same as internationally well-known brand,
(4) Entire CNC processing procedure ensure the quality consistency
and reliable.
(5) Military grade requirements of heat-treatment guarantee
durability, Specific heat treatment standards and special "stress
relief" processes ensure consistent performance.
(6) Designed for maximum performance and hole cleaning ability and
high penetration rate.
Our bits are interchangeable with Atlas Copco's COP32 34 44 54 64
84, Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360,
Mission60, DHD380 QL40, QL50 , QL60, QL80.SD10, NUMA100,
NUMA120,ect.
Matching the insert to the job requirements is essential in
achieving the desired results. Each of the following buttons is
ideal for different ground conditions, abrasion levels, PSIs and
penetration levels. In general, the larger the number of gauge
buttons the better overall performance, especially in hard rock.
Quality warranty:
SOLLROC products are made of high quality steel and all spares are
inspected strictly at every production steps before shipping. We
have quickly responses for your complaint and suggestion.
Package:
Using plywood cases and pallet for seaworthy to protect products
and avoid the damagement during transportation by sea. Using
cartons and plywood cases for air worthy to less the weight and
save the freigth. Also we can customize package according to your
special requests. Special mark is available.
Production time:
3-4 weeks after received payment in advance.
Transportation:
By air, by Express or by sea according to your requests.
Sollroc is recognized as one of the professional manufacturer and
supplier of high performance rock drilling tools like: DTH hammers
and bits, RC hammers and bits, DTH drill rods and top hammer
drilling tools with more 10 years of experience. Our tools are
widely used in different drilling applications including mining,
quarrying, water well drilling, geotechnical industries and etc.
