    Water Well Drilling Down The Hole Hammer 5 Inch HD Series HD55 Convertional Type For DTH Drilling

    Ask Lasest Price
    Brand Name : SOLLROC
    Model Number : DHD350 COP54 shank
    Certification : SGS
    Payment Terms : , L/C, T/T, MoneyGram, D/P
    Supply Ability : 2500 set per month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    Water Well Drilling Down The Hole Hammer 5 Inch HD Series HD55 Convertional Type For DTH Drilling

    Water Well Drilling Down The Hole Hammer 5 Inch HD Series HD55 Convertional Type For DTH Drilling


    Feature:

    1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption.

    2. Smooth performance and long service life of SOLLROC DTH hammer due to high quality alloy steel materials and advanced producing technology.

    3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

    4. Interchangeable with DTH bit and drill pipe.

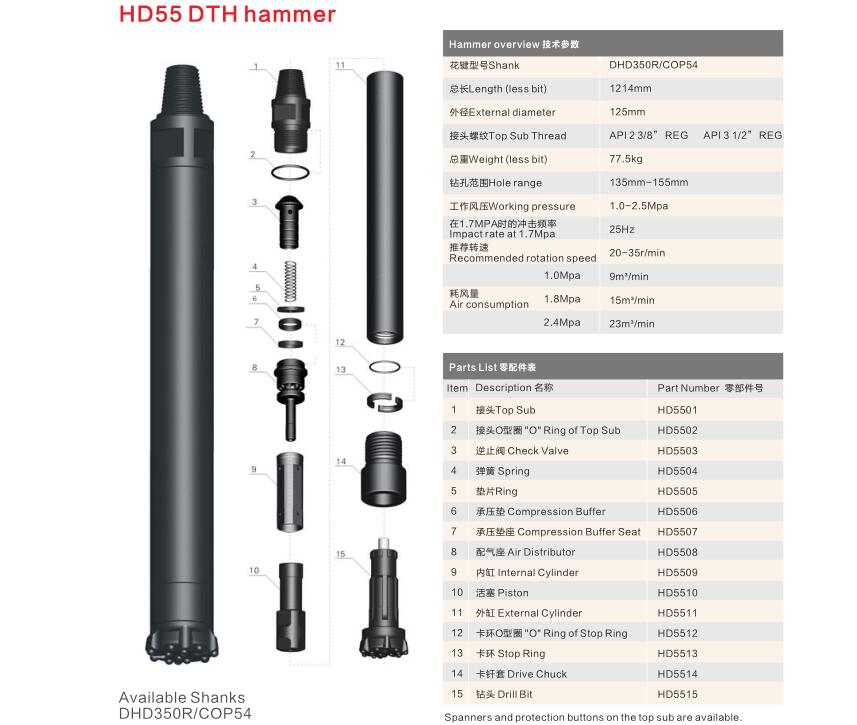

    Products specifications:


    ShankHD55
    Length (less bit)1214mm
    Outer diameter125mm
    Top sub threadAPI 3 1/2" REG pin / API 2 3/8" REG pin
    Weight (less bit)77kg (170lbs)
    Hole range135mm-165mm
    Working pressure10-25bar
    Impact rate at 1.7 Mpa25Hz
    Recommended rotation speed20-35 r/min
    Air consumption at 7-14 bar318-812 CFM


    DTH bits 155-203mm for above hammers can be available.


    Our HD serises DTH hammer specifications:

    DTH hammer typeHD35HD45HD55HD65HD85
    Length(less bit) mm9301005108411611300
    Weight(less bit) kg25kg (55lbs)40kg(88lbs)77kg(170lbs)96kg(210lbs)175kg(374lbs)
    External diameter mmΦ82mmΦ99Φ125Φ146-148Φ185
    Bit shankDHD3.5DHD340ADHD350RDHD360DHD380
    Hole range(mm)Φ90-110mmΦ110-130mmΦ135-165mmΦ155-1-203mm195mm-254mm
    Connection threadAPI 2 3/8" Reg.API 2 3/8"RegAPI 2 3/8"RegAPI 2 3/8"RegAPI 4 1/2"Reg
    Working pressure1.0-1.5Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-3.0Mpa1.0-3.0Mpa
    Impact rate at 1.5-1.7Mpa30Hz30Hz25Hz25Hz22Hz
    Recommended Rotation speed25-40r/min25-40r/min25-40r/min20-30r/min15-25r/min
    Air consumption1.0Mpa4.5m3/min6m3/min9m3/min10m3/min15m3/min
    1.8Mpa9.0m3/min10m3/min15m3/min20m3/min26m3/min
    2.4Mpa/15m3/min23m3/min28.5m3/min34m3/min

    1.Pre-sale service:

    Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments .

    -.Select equipment model.

    -.Design and manufacture products according to client's special requirement ;

    -.Train technical personnel for clients .

    2.Services during the sale:

    -.Pre-check and accept products ahead of delivery .
    -. Help clients to draft solving plans .

    3.After-sale services:

    Provide considerate services to minimize clients' worries.
    -.Complete After-sales service,professional engineers available to service machinery at home or oversea.
    -. 24 hours technical support by e-mail.
    -.Other essential technological service.


    Products photoes

    Water Well Drilling Down The Hole Hammer 5 Inch HD Series HD55 Convertional Type For DTH Drilling
