    HSD Series Tubeless Down The Hole Hammer 6 Inch Hammer Without Footvalve For Shank SD6

    Ask Lasest Price
    Brand Name : SOLLROC
    Model Number : SD6 shank
    Certification : SGS
    Payment Terms : , L/C, T/T, MoneyGram, D/P
    Supply Ability : 2500 set per month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    HSD Series Tubeless Down The Hole Hammer 6 Inch Hammer Without Footvalve For Shank SD6

    HSD Series Tubeless Down The Hole Hammer 6 Inch Hammer Without Footvalve For Shank SD6


    Product Description

    DTH hammers without footvalve can be available.

    Different out diameters of out cylinder can be available.

    DTH bits 60mm-381mm for above hammers can be available.


    Products specifications:


    ShankFit SD6 shank
    Length (less bit)1182mm
    Outer diameter148mm
    Top sub threadAPI 3 1/2" REG pin
    Weight (less bit)90kg (198lbs)
    Hole range155mm-190mm
    Working pressure10-25bar
    Impact rate at 1.7 Mpa25Hz
    Recommended rotation speed20-35r/min
    Air consumption at 7-14 bar317-918CFM

    Our SD-A serises (without footvalve/Nylon tube) DTH hammer specifications:

    DTH hammer typeSD4ASD5ASD6
    Length(less bit) mm101210901182
    Weight(less bit) kG40kg(88lbs)70kg(143lbs)90kg (198lbs)
    External diameter mmΦ99Φ125Φ148
    Bit shankSD4SD5SD6
    Hole range(mm)Φ110-135mmΦ135-155mmΦ146-148mm
    Connection threadAPI 2 3/8"RegAPI 2 3/8"RegAPI 3 1/2"Reg
    Working pressure1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa
    Impact rate at 1.5-1.7Mpa30Hz28Hz25Hz
    Recommended Rotation speed25-40r/min20-35r/min20-30r/min
    Air consumption1.0Mpa6m3/min7m3/min9m3/min
    1.8Mpa9m3/min14m3/min18m3/min
    2.4Mpa14m3/min19m3/min26m3/min

    DTH hammer typeSD8ASD10ASD12A
    Length(less bit) mm133015251860
    Weight(less bit) kg175kg(374lbs)316kg(695lbs)480kg(1056lbs)
    External diameter mmΦ185mmΦ185mmΦ275mm
    Bit shankSD8SD10SD12
    Hole range(mm)195mm-254mm254mm-311mm305mm-445mm
    Connection threadAPI 4 1/2"RegAPI 6 5/8" REGAPI 6 5/8" REG
    Working pressure1.0-3.0Mpa1.0-3.0Mpa1.0-3.0Mpa
    Impact rate at 1.7Mpa22Hz20Hz20Hz
    Recommended Rotation speed15-25r/min15-25r/min15-25r/min
    Air consumption1.0Mpa12m3/min22m3/min28m3/min
    1.8Mpa22m3/min40m3/min50m3/min
    2.4Mpa28m3/min65m3/min71m3/min

    The information you may like to know before order:


    SOLLROC Provide high efficiency and durable hammer all over the world.

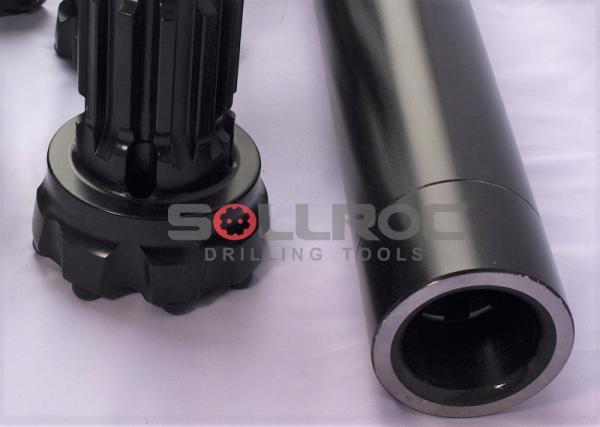

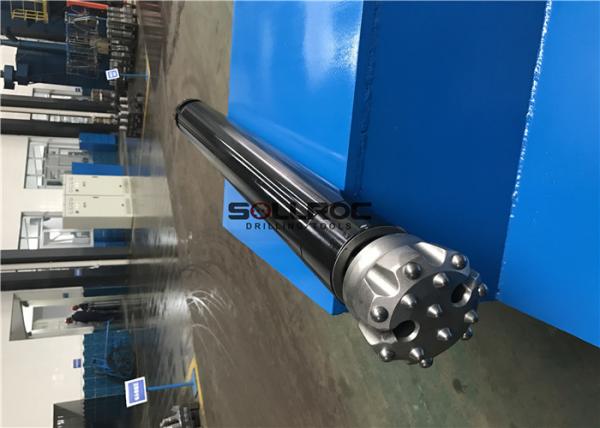

    Products photoes

    HSD Series Tubeless Down The Hole Hammer 6 Inch Hammer Without Footvalve For Shank SD6

    HSD Series Tubeless Down The Hole Hammer 6 Inch Hammer Without Footvalve For Shank SD6
