Overburden Drilling ODEX240 ODEX Casing Tube Systems For 8" Hammer

Product Specification:

ODEX system Eccentric Casing system is suitable for drilling water wells, geothermal wells, short mircopiles,medium mini-type grouting hole of building,damand harbour project.
- Rapid removal of cuttings; High penetration rate, especially in resistant rock formation;
- Easy soil and groundwater sampling during drilling;
- Possible to measure yield estimate at selected depth in the formation;
- Advantageous in unconsolidated formations with a high risk of caving

Casing drilling involves drilling and casing a well simultaneously through unstable ground conditions, In casing drilling process, down the hole tools can be retrieved, through the casing on wire-line, meaning tool recovery or replacement of tools
can take minutes versus hours under conventional methods. This process employs wire line-retrievable tools and a drill-lock assembly, permitting bit and BHA changes, coring, electrical logging and even directional or horizontal drilling. Once the casing point is reached, the casing is
cemented in place without tripping pipe.

Casing drilling has been employed in many countries as an effective method of reducing the overall drilling costs by reducing drilling time and drill string problems
encountered during conventional drilling process.

ODEX240 system

Rapid removal of cuttings; High penetration rate, especially in resistant rock formation;
Easy soil and groundwater sampling during drilling;
Possible to measure yield estimate at selected depth in the formation;
Advantageous in unconsolidated formations with a high risk of caving

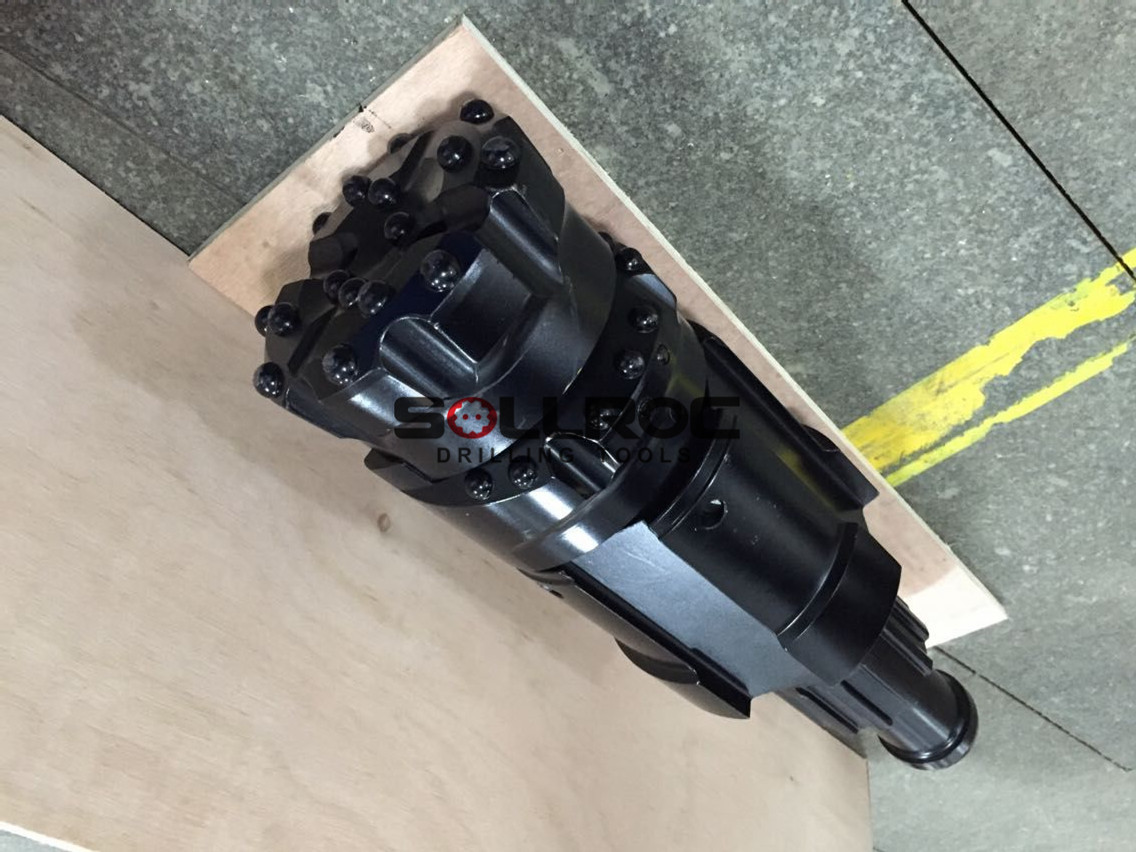

Eccentric Overburden Drilling System Consist of Guide device, Casing shoe, Reamer, Pilot bit, Guide sleeve and Locking kits

About Us:

Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
