Overburden ODEX140 Casing Drilling Systems Tools For 5" Hammer

Ask Lasest Price
Brand Name :	SOLLROC
Model Number :	ODEX140 drilling system
Certification :	SGS
Supply Ability :	20000 sets per month
Delivery Time :	3-4 weeks

Add to Cart

Product Details
Company Profile

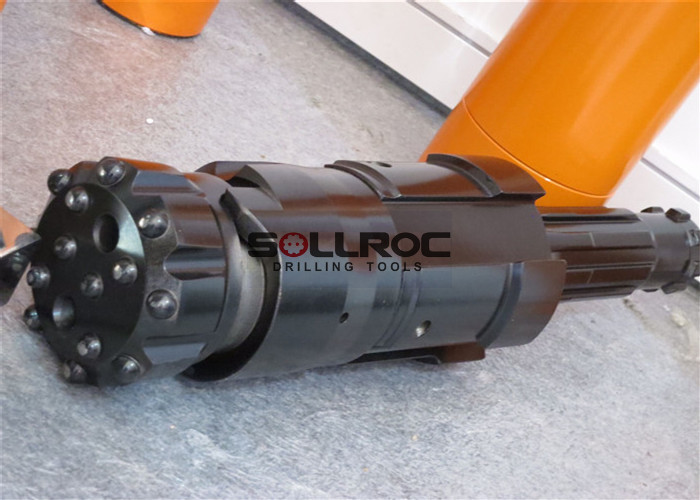

Overburden ODEX140 Casing Drilling Systems Tools For 5" Hammer

Overburden ODEX140 Casing Drilling Systems Tools For 5" Hammer

Product Specification:

ODEX system Eccentric Casing system is suitable for drilling water wells, geothermal wells, short mircopiles,medium mini-type grouting hole of building,damand harbour project.
- Rapid removal of cuttings; High penetration rate, especially in resistant rock formation;
- Easy soil and groundwater sampling during drilling;
- Possible to measure yield estimate at selected depth in the formation;
- Advantageous in unconsolidated formations with a high risk of caving

Casing drilling involves drilling and casing a well simultaneously through unstable ground conditions, In casing drilling process, down the hole tools can be retrieved, through the casing on wire-line, meaning tool recovery or replacement of tools
can take minutes versus hours under conventional methods. This process employs wire line-retrievable tools and a drill-lock assembly, permitting bit and BHA changes, coring, electrical logging and even directional or horizontal drilling. Once the casing point is reached, the casing is
cemented in place without tripping pipe.

Casing drilling has been employed in many countries as an effective method of reducing the overall drilling costs by reducing drilling time and drill string problems
encountered during conventional drilling process.

Type	1.Casing tube	2.Drill pipe	3.Guide sleeve	4.DTH hammer	5.Casing shoe
HOD90	Maximum OD:115mm Minimum ID:102mm	connection thread:API 2 3/8"REG OD:76mm wrech flats:65mm	Effective length: 174mm	HD35,COP32, IR3.5,QL30	L3=90mm,L4=55mm, D3=101mm,D4=93mm
HOD115	Maximum OD:142mm Minimum ID:128mm	connection thread:API 2 3/8"REG OD:76mm wrech flats:65mm	Effective length: 174mm	HD45,COP44, SD4,DHD340A,QL40,HM4	L3=76mm,L4=55mm, D3=127.5mm,D4=117mm
HOD140	Maximum OD:171mm Minimum ID:155.6mm	connection thread:API 2 3/8"REG OD:89mm wrech flats:65mm	Effective length: 205mm	HD55,COP54, SD5,DHD350R,QL50	L3=90mm,L4=63mm, D3=155.3mm,D4=143mm
HOD165	Maximum OD:195mm Minimum ID:182.6mm	connection thread:API 3 1/2"REG OD:114mm wrech flats:95mm	Effective length: 225mm	HD65,COP64, SD6,DHD360, QL60	L3=95mm,L4=55mm, D3=181.5mm,D4=166mm
HOD190	Maximum OD:222mm Minimum ID:205mm	connection thread:API 3 1/2"REG OD:114mm wrech flats:95mm	Effective length: 285mm	HD65,COP64, SD6,DHD360, QL60	L3=110mm,L4=70mm, D3=204.5mm,D4=193mm
HOD240	Maximum OD:273mm Minimum ID:260.4mm	connection thread:API 3 1/2"REG OD:114mm wrech flats:95mm	Effective length: 343mm	HD85,COP84, SD8,DHD380, QL80	L3=110mm,L4=65mm, D3=259mm,D4=241mm
HOD280	Maximum OD:324mm Minimum ID:305mm	connection thread:API 4 1/2"REG OD:114mm wrech flats:95mm	Effective length: 305mm	SD10,NUMA100	L3=125mm,L4=75mm, D3=304mm,D4=281mm

Overburden ODEX140 Casing Drilling Systems Tools For 5" Hammer

About Us:

Sollroc with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools.
