    34mm-43mm Diameter Tapered Button Bits For Geotechnical Borehole Drilling

    Ask Lasest Price
    Brand Name : SOLLROC
    Model Number : 34mm-43mm
    Certification : SGS
    Supply Ability : 2000 sets per month
    Delivery Time : 4 weeks
    • Product Details
    • Company Profile

    34mm-43mm Diameter Tapered Button Bits For Geotechnical Borehole Drilling

    Product specifications:


    Type: Short Skirt and Long Skirt

    Tapered Button BitsDiameterButton(mm)TaperFlushing
    holes
    Part No.
    mminchGaugeFrontAngle
    (°)
    Button
    Type
    SideFront
    Taper 7°
    Button Bits
    321 17/64"3*81*825Spherical
    Ballistic
    Conical
    21SC432-722
    361 27/64"3*81*82521SC436-722
    381 1/2"3*81*82521SC438-722
    401 37/64"3*91*82521SC440-722
    421 21/32"3*91*82521SC442-722
    Taper 12°
    Button Bits
    321 1/32"5*72*735Spherical
    Ballistic
    Conical
    12°21SC732-1222
    341 3/8"5*72*73512°21SC734-1222
    361 27/64"5*82*73512°21SC736-1222
    381 1/2"5*82*73512°21SC738-1222
    401 37/64"5*92*73512°21SC740-1222
    421 21/32"5*92*83512°21SC742-1

    Thread button bit connection:

    Drill bit diameterThread standard
    (mm)(in)
    351 3/8R22 R25
    361 13/32R22 R25 R28
    381 1/2R22 R25 R28 R32
    431 11/16R25 R28 R32
    451 3/4R25 R28 R32
    481 7/8R32
    512R32
    642 1/2R38 T38
    763R38 T38 T45
    893 1/2R38 T38 T45 T51
    1024T45 T51 ST58 SD60
    1154 1/2T51 ST58 SD60
    1275T51 ST58 SD60
    1405 1/2T51 ST58 SD60
    1526T51 ST58 SD60

    We can also provide related products DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

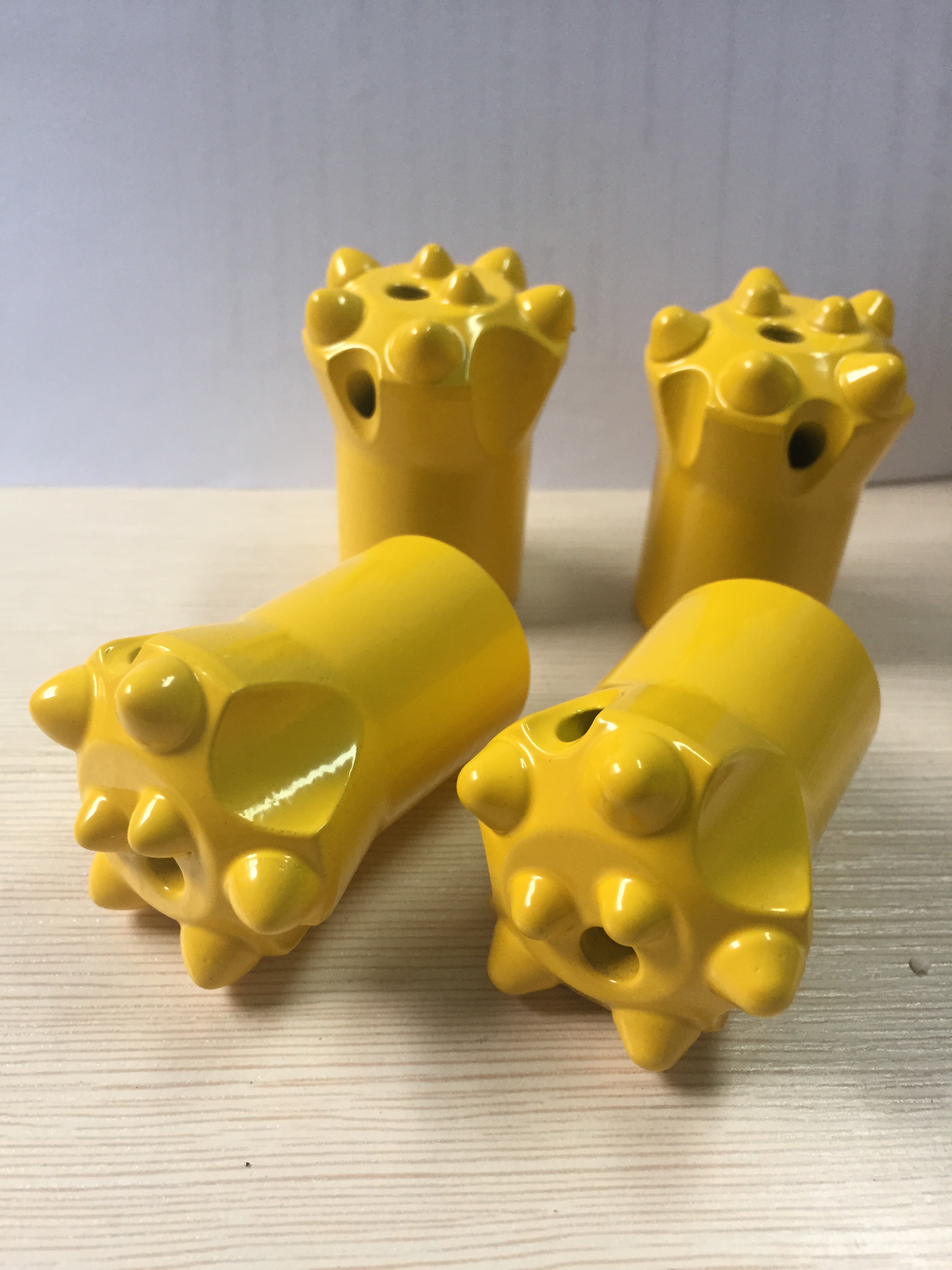

    Product photos:





    Quality warranty:
    SOLLROC products are made of high quality steel and all spares are inspected strictly at every production steps before shipping. We have quickly responses for your complaint and suggestion.

    Package:
    Using plywood cases and pallet for seaworthy to protect products and avoid the damagement during transportation by sea. Using cartons and plywood cases for air worthy to less the weight and save the freigth. Also we can customize package according to your special requests. Special mark is available.

    Production time:
    3-4 weeks after received payment in advance.

    Transportation:
    By air, by Express or by sea according to your requests.


    SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
    We have rich experience in this field of DTH hammers and bits for 20 years.
    Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
