    Hand Held Pneumatic Button Bit Sharpener For Grinding Carbides

    Ask Lasest Price
    Brand Name : SOLLROC
    Model Number : SC220 bits
    Certification : SGS
    Supply Ability : 2000 sets per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Hand Held Pneumatic Button Bit Sharpener For Grinding Carbides

    Hand Held Pneumatic Button Bit Sharpener For Grinding Carbides


    Product specifications: SC220

    The SC220 Button Bit Grinder is a high powered tool for worn button bit sharpening. It is configured for hand-held use by ergonomic placement of a very efficient throttle and support handle. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.

    SC220 hand-held grinding machines have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved.

    Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant during the grinding process.

    ModelSC220
    Max working air pressure7 bar (100 psi)
    Air Consumption2.0 m3/min
    Power Output:1.5 kw
    Spindle Speed22000 RPM
    Air Hose Diameter16 mm
    Water Hose Diameter8 mm
    Sound Level90 dB
    Grinding range6-25 mm
    Gross weight4 kg

    There are different models for your choice:


    8mm shank model,

    9mm shank model,

    internal hex drive model, etc..

    Our grinding cup can be used for grinding 7mm-25mm button size. Other sizes available on request.


    These grinding cups can be used for grinding both the bit button and body steel in one operation.

    The combination grinding pin benefits from a specially developed grinding material capable of grinding both carbide and steel at a regular and consistent rate.

    For bit's button shapeFor bit's button size (mm)
    spherical buttons ballistic buttons6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
    bit's body steel removal7-8 9-10 11-12 13-14 15-16 17-18 19-20

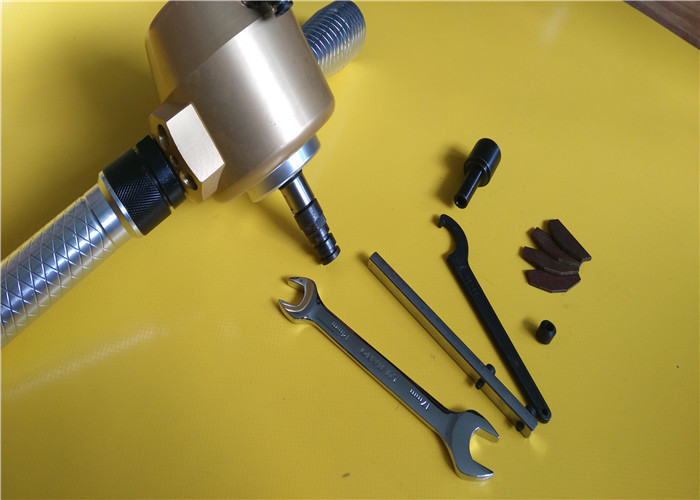

    Product Phots


    Hand Held Pneumatic Button Bit Sharpener For Grinding Carbides

    Hand Held Pneumatic Button Bit Sharpener For Grinding Carbides


    SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
    We have rich experience in this field of DTH hammers and bits for 20 years.
    Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
